RIESE & MULLER • Charger3 GT rohloff (49|Caribbean|Kiox)

SKU RIES20-054.03
$9 206.00
In stock
1
Product Details

[tab name="Overview"]

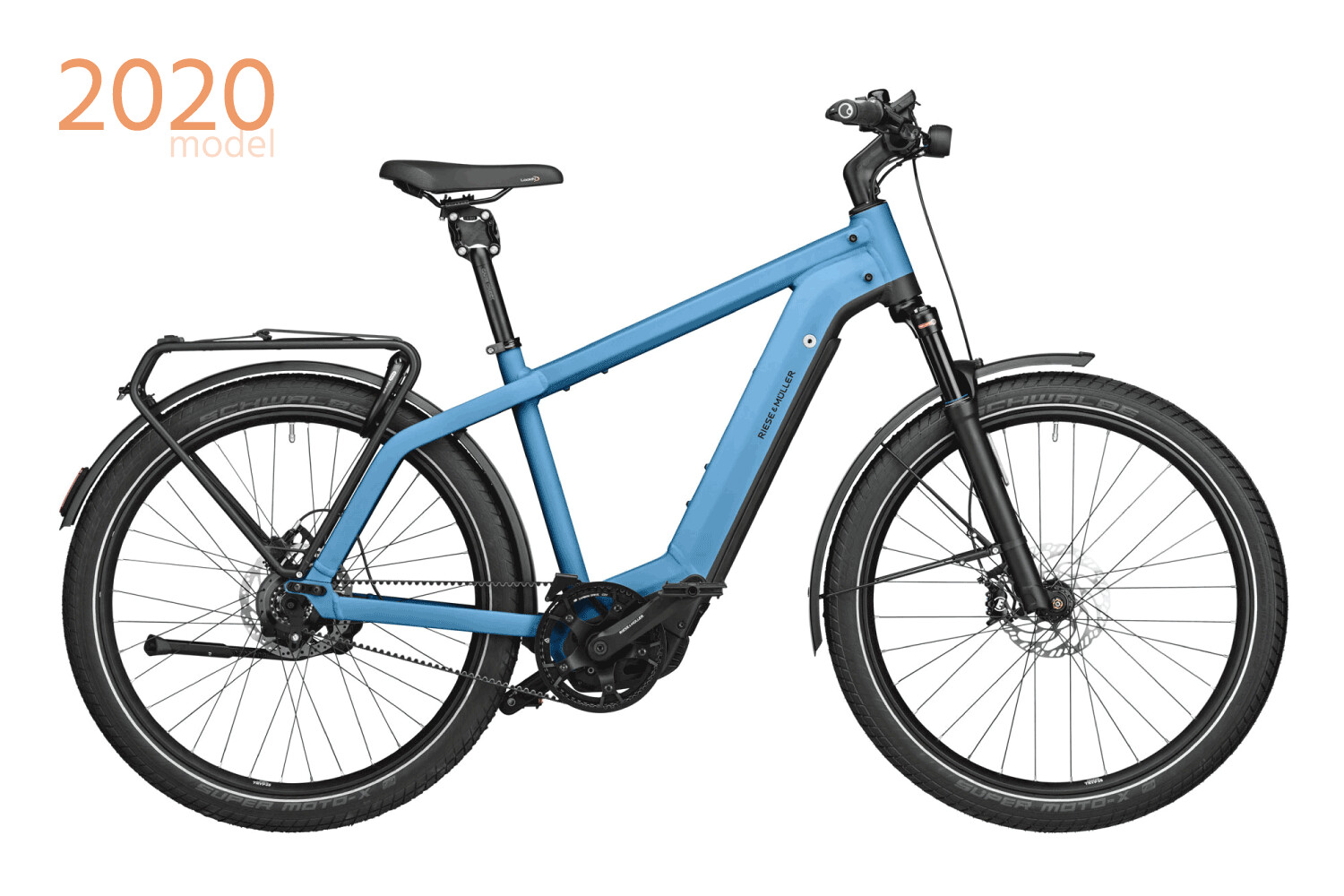

The Charger3. The lightness of riding.

With its sporty geometry, dynamic chassis with suspension fork and comfort seatpost, as well as the latest generation Bosch motor, the Charger3 is the perfect everyday E-Bike for commuting or for touring over ranges of up to 90 km and more. Thanks to clever details, daylight-bright lighting and continuous light, the Charger3 is perfect for riding in any weather, and can be parked outside with ease.


Try the Riese & Muller Charger3 GT rohloff at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

The most power ever on an E-Bike.


The latest generation of the Performance Line CX is the most powerful E-Bike motor of all times to have been produced by Bosch. It sets totally new benchmarks with up to 340% pedal assistance, a maximum torque of 75 Nm, extremely sporty start-up characteristics and pedalling rate assistance of up to 120 rpm. Compared to its predecessor model, it cannot fail to win you over with even lower pedal resistance and 25% lower weight. At the same time, it is almost half the size, providing for ultra-aesthetic and unobtrusive integration.

Maximum power in minimalist form.


We have reinvented the cockpit of the E-Bike: If you opt for the cockpit with Kiox display or the Bosch SmartphoneHub, these are perfectly integrated into the handlebars with optimised cabling. The adjustable angle of the stem allows you to choose a sporty or more comfortable seating position. Just as stylish as the cockpit is the frame design, with its built-in 500 Wh battery.

An E-Bike as individual as you are.


If you like heading off on tours, riding in town as well as off-road, then select the GX option - a first-class component combination of all-terrain tires, wide flat pedals and ergonomic bar-end handles.However, if you need an E-Bike for heavier loads, you'll be well served with the optional heavy duty package with its considerably more stable stem, handlebar, saddle and pedals, increasing the permitted total weight to 160 kg.

Simple. Indestructible.


Anyone riding an E-Bike with the Gates CDX carbon belt drive is at peace. And in two ways: because on the one hand the innovative drive offers a wonderfully smooth ride and great riding comfort. While at the same time being unbelievably low-maintenance and performing its tasks with the utmost reliability. The carbon belt drive provides a new, carefree riding experience - for every need and every intent.

Smartphone docking and additional display


The Bosch Smartphone Hub transforms your smartphone into a display and communication system which combines intelligent navigation, fitness data and much more. It is convenient and reliable to operate using buttons on the handlebar or voice control. Your smartphone is automatically charged during your trip. But it also works without a mobile phone: in that case an integrated display shows key riding data.

[tab name="Technical Details"]

Drivetrain

CHAIN Gates drive belt CDX
PINION 19T, for Gates drive belt CDX
SHIFT LEVERS Rohloff E14 electronic shifter
CASSETTE -
CRANKSET FSA/Riese & Müller, 170 mm
CHAINRING 55T, for Gates drive belt CDX
CHAIN GUARD Riemenschutzring
FRONT DERAILLEUR -
REAR DERAILLEUR -

Wheels

FRONT HUB Novatec Disc 32H
REAR HUB Rohloff Speedhub E14, 14-speed, 36H
RIMS Rodi Tryp35, 27,5"
SPOKES -
FRONT TIRE Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Rock Razor 60-584*
REAR TIRE Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Rock Razor 60-584*
TUBES Schwalbe AV21
WHEEL SIZE 27.5"

Cockpit

SADDLE Selle Royal New Lookin Moderate Male; Selle Royal Nuvola*
SEATPOST Cane Creek Thudbuster ST
SEATCLAMP Kalloy SC-201, 40,0 mm
HANDLEBAR Humpert ergotec ErgoXXL, 31,8 mm; Satori R&M Custom, 25,4mm, Alu*
STEM Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
GRIPS Ergon ergonomic; Ergon GP30-L*
HEADSET Acros IntegrationX, block lock
PEDALS VP-538; VP-658, oversized spindle *

Brakes

FRONT BRAKE Magura MT4 hydraulic disc brake
REAR BRAKE Magura MT5 hydraulic disc brake
BRAKE LEVER Magura MT Lever
ABS -

Accessories

FRONT LIGHT Supernova M99 Mini Pro-25
TAIL LIGHT Supernova M99, integrated brake light
MUDGUARDS SKS A65R
LUGGAGE RACK -
KICKSTAND Pletscher Comp 40 Flex
LOCK ABUS Shield

Frameset

FORK Suntour Aion, Air, tapered, 100mm
REAR SHOCK -
FRONT TRAVEL -
REAR TRAVEL -
FRAME -
FRAME COLOUR caribbean matt*; ceramic white*; storm blue matt*

E-Bike

MOTOR Bosch Performance Line CX (MY20)
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 60 | TOUR: 140 | SPORT/eMTB: 140-340 | TURBO: 340
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 40 | TOUR: 50 | eMTB: 75 | TURBO: 75
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Very Sporty
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes (dynamic)
MOTOR WEIGHT approx. 2.9 kg (6.4 lbs)
USER INTERFACE / DISPLAY Bosch Intuvia (Optional: Bosch Kiox or Bosch SmartphoneHub)
RIDING MODES 5 modes (OFF, ECO, TOUR, eMTB, TURBO)
CONNECTIVITY USB charging option
THROTTLE -
BATTERY Bosch PowerTube 500 (36V/13.4Ah | 500Wh | 2.9kg), Optional with additional Bosch PowerPack 500 (36V/26,8Ah | 1000Wh | 5.5kg)*
RANGE up to 120 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 4A Standard Charger
CHARGING TIME 2 hrs to 50 % | 4.5 hrs to 100% , Dual Battery Operation 4.2 hrs to 50% | 9.8 hrs to 100%

Weight

WEIGHT 27.4 kg (60.41 lbs)
TOTAL PERM WEIGHT 140 kg (309 lbs)

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE 46 cm 49 cm 53 cm 56 cm
A FRAME HEIGHT 460 mm 490 mm 530 mm 560 mm
B SEAT TUBE ANGLE 74° 74° 74° 74°
C SEAT TUBE OFFSET - - - -
D SEAT ANGLE - - - -
E HEAD TUBE LENGTH 150 mm 150 mm 150 mm 165 mm
F HEAD TUBE ANGLE 68° 68° 68° 68°
G TOP TUBE LENGTH (HORIZONTAL) 590 mm 620 mm 650 mm 670 mm
H CHAINSTAY LENGTH 480 mm 480 mm 480 mm 480 mm
I BB DROP - - - -
J WHEEL BASE 1155 mm 1185 mm 1215 mm 1240 mm
K STACK 670 mm 670 mm 670 mm 685 mm
L REACH 390 mm 415 mm 450 mm 465 mm
M STAND-OVER HEIGHT 835 mm 840 mm 840 mm 840 mm
BB HEIGHT 285 mm 285 mm 285 mm 285 mm
CRANK LENGTH - - - -
STEM LENGTH - - - -
SEATPOST LENGTH - - - -
SADDLE WIDTH - - - -
HANDLEBAR WIDTH - - - -
TOTAL LENGHT - - - -
TRAIL 92 mm 92 mm 92 mm 92 mm
FORK RAKE - - - -

bike geometry picture
