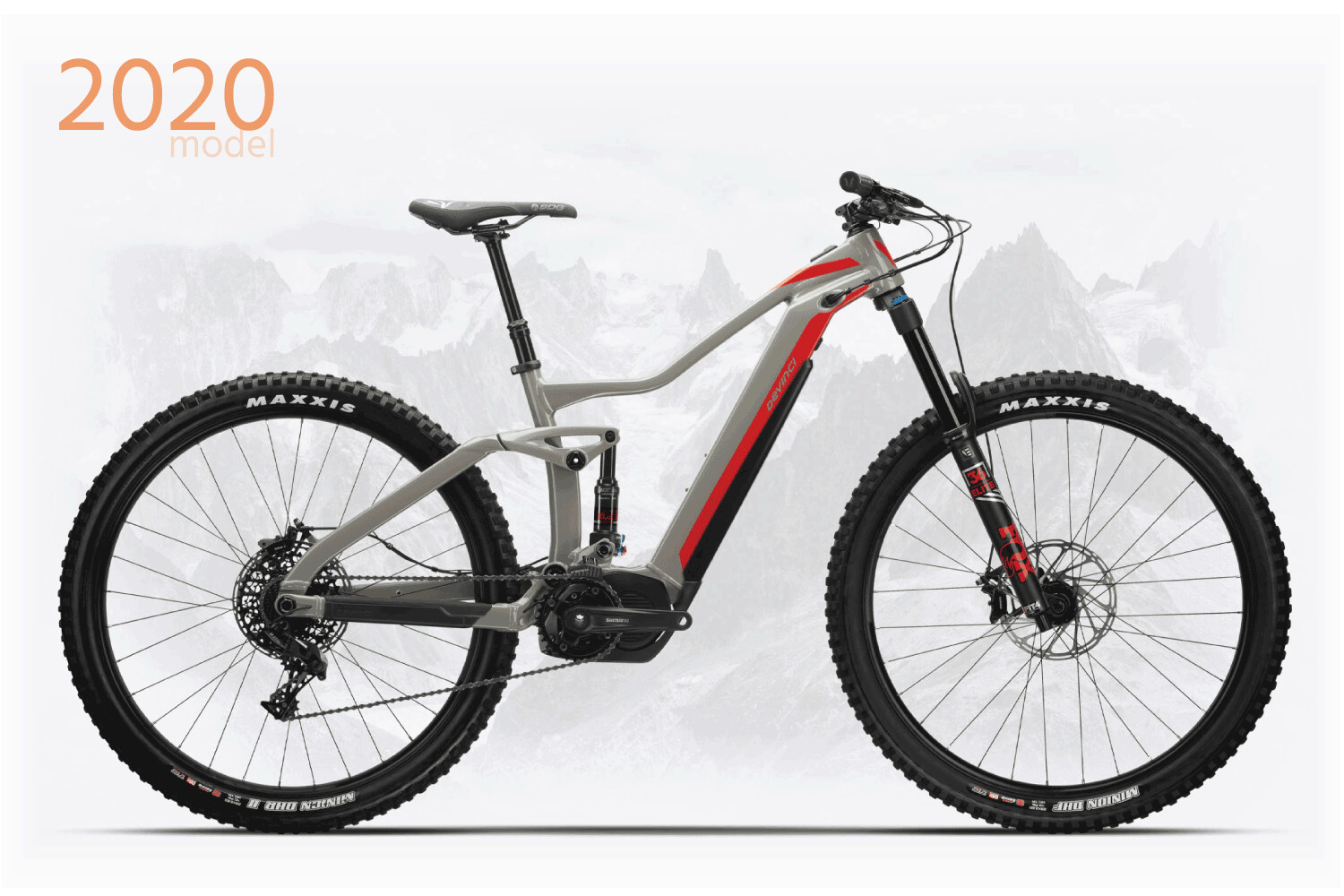

DEVINCI • DC NX 11S

SKU DEVI20-003
$6 999.00
In stock
1
Product Details

[tab name="Description"]

E-ALL MOUNTAIN

What makes DC 29 so dangerously fun is its uncanny ability to acclimate and annihilate anything you point it toward — from technical and gnarled, to rolling and flat-out fast. Agile handling is a function of modern geometry that combines steep seat angles for climbing with slacker head angles for confidence inspiring cornering and control. Made in Canada frame anatomy is crafted from light, tough 6066-T6 Aluminum. Molded frame, motor, and battery protection shields the bike from abuse. And armed with Shimano’s next generation e-engine, that integrates seamlessly into the frame, you’ll experience effortless liftoff as you charge climbing segments at rates that’ll make your heart race. Hop on the DC today for a helluva good time.


Try the Devinci DC NX 11S at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Technology"]

Aluminum 6066-T6 Frame


Made in Canada. Frame built from 6066-T6 tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusiv to Devinci bikes.
Modern trail bike geometry featuring a 10mm longer reach and 0.5 degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.

Boost 148


Frames designed around Boost 148 offer ample tire clearance so you can take advantage of improved wheel stiffness.

Frame Protechtion


  1. Molded polyurethane on chainstay upper/lower valiantly blocks, deflects and defends.
  2. Fiber-reinforced Nylon battery protector shields your power source from wear and tear.
  3. Cast-alloy motor features a flexible Nylon protector that fights rocks and loose debris.

EMTB Specific Pivot Placement


Optimized for active suspension performance and enhanced traction on roots, rocks and slick terrain.

Revamped Shock Tune


Heightened small bump sensitivity and a progressive feel, plus the ability to run lower pressure while maintaining optimal bottom resistance.

Lifetime Warranty


Riding passions last a lifetime. Now your bike does too.

Molded Chainstay Protector


Reinforced chainstay protectors enhance durability for the rugged ride ahead.

Dropout Speed Sensor


Clean streamlined solution to clunky, outdated spoke magnets, with internalized cable routing for less rattle.

Dropper Post Compatibility


S:125 M:150 L:170 XL:170

Motor / Chainguide


Motor
Designed to give you that natural feel of riding a normal MTB. At 2.8kg, one of the lightest motors on the market.

Chainguide Equiped
Ultra-tough, lightweight e*thirteen chainguide for headache-free chain-holding security.

Switch Unit (Shifter)


Switch between Boost, Trail, Eco and Walk settings in a flash.

Battery


Ultra-durable, powerful battery designed for the rigors of mountain biking. Supported travel of up to 100km on one charge.

[tab name="Specifications"]

Drivetrain

CHAIN SHIMANO HG601-11S
PINION -
SHIFT LEVERS SRAM GX 11S SINGLE CLICK
CASSETTE SRAM PG1130-11S 11-42T
CRANKSET SHIMANO E8000
CHAINRING -
CHAIN GUIDE E13 CHAIN GUIDE FOR STEPS
REAR DERAILLEUR SRAM NX 11S

Wheels

FRONT HUB SRAM MTH716 TA 15X110
REAR HUB SRAM MTH746 TA 12X148 BOOST
RIMS V2 COMP WIDE DB TUBELESS READY | 36MM INNER
SPOKES STAINLESS 14G W/NYLOK
FRONT TIRE MAXXIS HIGH ROLLER II 29X2.6" 3C MAXXTERRA EXO+ TL
REAR TIRE MAXXIS MINION DHRII 29X2.60" 3C MAXXTERRA, EXO+, TR
TUBES -
WHEEL SIZE 29"

Cockpit

SADDLE SDG RADAR
SEATPOST TRANZX DROPPER 31.6MM 1XLEVER
SEATCLAMP ALLOY CNC 34.9MM BLACK
HANDLEBARS V2 PRO 35 RISERBAR15MM | 780MM
STEM V2 PRO 35 | 50MM
GRIPS DEVINCI PERFORMANCE W/LOCK-ON
HEADSET FSA ORBIT 1.5 ZERO STACK
PEDALS -

Brakes

FRONT BRAKE SRAM GUIDE RE
REAR BRAKE SRAM GUIDE RE
BRAKE LEVER -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK FOX FLOAT 36 PERFORMANCE ELITE EVOL 29 BOOST 110 160MM
REAR SHOCK FOX FLOAT DPS EVOL LV FACTORY 185X55
FRAME ALUMINUM OPTIMUM G04 150MM
(Handcrafted in Canada / Fabriqué à la main au Canada)
FRAME COLOUR Gloss | Silver Red

E-Bike

UI/REMOTE SHIMANO STEPS SC-E8000
THROTTLE -
RIDING MODES 4 (Boost, Trail, Eco and Walk)
CONNECTIVITY -
BATTERY SHIMANO STEPS E8035 504WH LITHIUM-ION
CHARGER -
CHARGING TIME -
MOTOR SHIMANO STEPS E8000 250W
MAX SUPPORTED SPEED 32km/h
RANGE up to 100km
WIRING HARNESS Custom Devinci wiring harness

Weight

WEIGHT 24.48 kg (53.97 lbs)
TOTAL PERM WEIGHT -

Specifications subject to change without notice.

[tab name="Geometry"]

FRAME SIZE S (160-170) M (169-179) L (178-188) XL (187-198)
A FRAME HEIGHT 410 mm 420 mm 455 mm 495 mm
B SEAT TUBE ANGLE - - - -
C SEAT TUBE OFFSET - - - -
D SEAT ANGLE 76.5° 76.5° 76.5° 76.4°
E HEAD TUBE LENGTH 105 mm 105 mm 115 mm 125 mm
F HEAD TUBE ANGLE 65.5° 65.5° 65.5° 65.5°
G TOP TUBE LENGTH (HORIZONTAL) 585 mm 605 mm 628 mm 651 mm
H CHAINSTAY LENGTH 470 mm 470 mm 470 mm 470 mm
I BB DROP - - - -
J WHEEL BASE 1224 mm 1244 mm 1268 mm 1292 mm
K STACK 625 mm 625 mm 634 mm 643 mm
L REACH 435 mm 455 mm 475 mm 495 mm
M STAND-OVER HEIGHT 747 mm 755 mm 778 mm 805 mm

bike geometry picture
