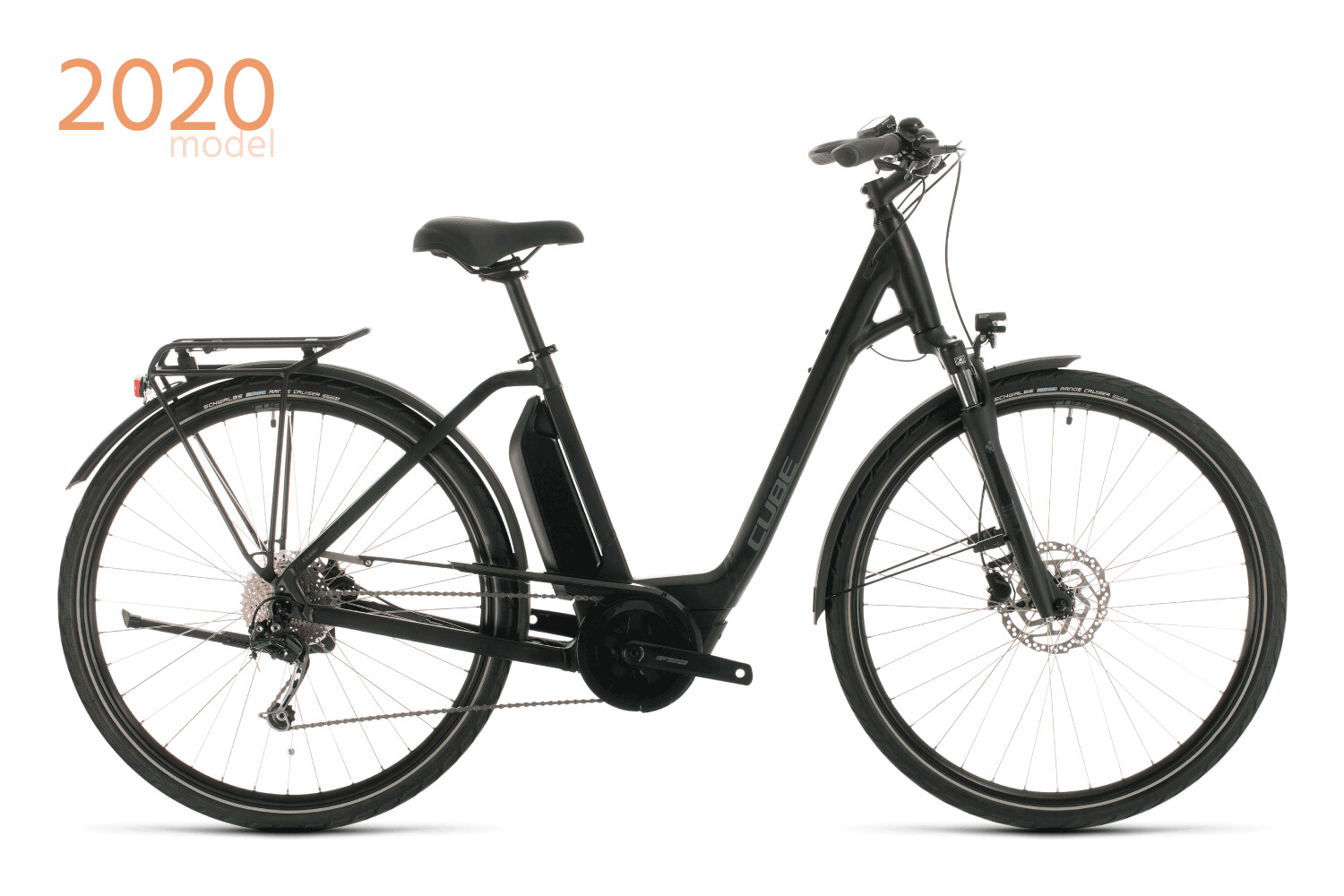

CUBE • Town Sport Hybrid ONE 400

SKU CUBE20-003
$3 199.00
In stock
1
Product Details

[tab name="Overview"]

Pleasure rather than a chore

What happens when you take the comfort, safety and practicality of our Town Hybrid range and combine it with the wide gear range and easy shifting of Shimano's 9-speed components? The Town Sport Hybrid ONE, that's what: a Bosch e-bike that makes getting around town a pleasure rather than a chore. With its Easy Entry frame and Comfort Ride Geometry, it's a bike that's as good to ride as it looks. Urban savvy comes courtesy of the included mudguards, kickstand and luggage carrier, so you're fully equipped for any journey. Sporty ride-anywhere ability is provided by the 9-speed Shimano transmission and powerful, all-weather hydraulic disc brakes, so you can explore beyond the urban jungle too. The Bosch motor gives you the added power you need to easily tackle any hill. And the suspension fork provides comfort on the roughest of road surfaces, while the integrated lighting system ensures you can see and be seen at all times of day. Wherever you need to be, the Town Sport Hybrid ONE will get you there quickly, safely and in comfort.


Try the Cube Town Sport Hybrid ONE 400 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

Simplicity

The Town Hybrid's frame is - despite the elegant simplicity of its looks - a tour de force of engineering excellence.

Safety

The Easy Entry frame has been specifically designed to withstand the considerable power of the Bosch drive unit, providing effortless handling thanks to our Comfort Ride Geometry and the reassurance that it's passed all our stringent in-house safety tests.

Optimized

Siting the battery unit behind the stiff, strong, triple-chamber seat tube keeps it out of the way and puts it in the best position for easy handling, while the Bosch drive unit sits inside its own gravity cast housing.

No Clutter

Practical touches like internally routed cables complement the frame's clean looks, as well as improving gear-shifting performance in the long term.

Practicality

The integrated luggage carrier is exceptionally strong and stiff. It's the kind of attention to detail you'd expect from CUBE.

[tab name="Technical Details"]

Drivetrain

CHAIN KMC X9
PINION -
SHIFT LEVERS Shimano SL-M2010-9R, Rapidfire-Plus
CASSETTE Shimano CS-HG201, 11-36T
CRANKSET FSA Metropolis Comfort, 38T, 165mm
CHAINRING -
CHAIN GUARD Herrmans Halo-38
FRONT DERAILLEUR -
REAR DERAILLEUR Shimano Deore RD-M592-SGS, 9-Speed

Wheels

FRONT HUB Shimano HB-TX505, QR, Centerlock
REAR HUB Shimano FH-TX505, QR, Centerlock
RIMS CUBE EX23, 36H, Disc, Tubeless Ready
SPOKES -
FRONT TIRE Schwalbe Range Cruiser, Active, K-Guard, 47-622
REAR TIRE Schwalbe Range Cruiser, Active, K-Guard, 47-622
TUBES -
WHEEL SIZE -

Cockpit

SADDLE Natural Fit Shen
SEATPOST CUBE Performance Post, 27.2mm
SEATCLAMP CUBE Varioclose, 31.8mm
HANDLEBAR CUBE Comfort Shape Bar
STEM CUBE Performance Stem Pro, 31.8mm
GRIPS Natural Fit Comfort
HEADSET FSA No.10, Semi-Integrated
PEDALS -

Brakes

FRONT BRAKE Shimano BR-MT200, Hydr. Disc Brake (180/160)
REAR BRAKE Shimano BR-MT200, Hydr. Disc Brake (180/160)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT AXA Compactline 20, 6-12V, DC
TAIL LIGHT Trelock LS 611 Duo Flat
MUDGUARDS ACID 53
LUGGAGE RACK -
KICKSTAND CUBEstand Cmpt
LOCK -

Frameset

FORK SR Suntour NEX-E25, 50mm
REAR SHOCK -
FRONT TRAVEL 50 mm
REAR TRAVEL -
FRAME Aluminium Superlite, Comfort Ride Geometry, Comfort And Safety, Semi-Integrated Carrier, Double Butted
FRAME COLOUR black'n'grey

E-Bike

MOTOR Bosch Active Line Plus (Gen 3)
GEAR TYPE -
SUPPORT LEVEL (%) ECO: 40 / TOUR: 100 / SPORT: 180 / TURBO: 270
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 35 /TOUR: 40 / SPORT: 45 / TURBO: 50
POWER 250W (418W max)
MAXIMUM CADENCE -
START-UP BEHAVIOUR Moderate
SPEED SUPPORT UP TO 20 mph (32 km/h)
GEAR SHIFT DETECTION Yes
MOTOR WEIGHT 7.1 lbs (3.2 kg)
USER INTERFACE / DISPLAY Bosch Purion
RIDING MODES Off, Eco, Tour, Sport, Turbo
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerPack 400
RANGE up to 144 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 2A
CHARGING TIME approx. 4.9 hrs to 80%, approx. 6.5 hrs to 100%

Weight

WEIGHT 24.3 kg (54 lbs)
TOTAL PERM WEIGHT -

* Specifications are subject to change without notice

[tab name="Geometry"]

FRAME SIZE 42 cm 46 cm 50 cm 54 cm 58 cm
A FRAME HEIGHT 420 mm 465 mm 480 mm 520 mm 560 mm
B SEAT TUBE ANGLE 72° 72° 72° 72° 72°
C SEAT TUBE OFFSET - - - - -
D SEAT ANGLE - - - - -
E HEAD TUBE LENGTH 160 mm 165 mm 175 mm 190 mm 210 mm
F HEAD TUBE ANGLE 69° 70° 70° 70° 70°
G TOP TUBE LENGTH (HORIZONTAL) 581 mm 593 mm 605 mm 617 mm 629 mm
H CHAINSTAY LENGTH 540 mm 540 mm 540 mm 540 mm 540 mm
I BB DROP -70 mm -70 mm -70 mm -70 mm -70 mm
J WHEEL BASE 1173 mm 1174 mm 1186 mm 1198 mm 1210 mm
K STACK 632 mm 641 mm 651 mm 665 mm 683 mm
L REACH 377 mm 386 mm 395 mm 402 mm 407 mm
M STAND-OVER HEIGHT - - - - -
BB HEIGHT - - - - -
CRANK LENGTH - - - - -
STEM LENGTH - - - - -
SEATPOST LENGTH - - - - -
SADDLE WIDTH - - - - -
HANDLEBAR WIDTH - - - - -
TOTAL LENGHT - - - - -
TRAIL - - - - -
FORK RAKE - - - - -

bike geometry picture
