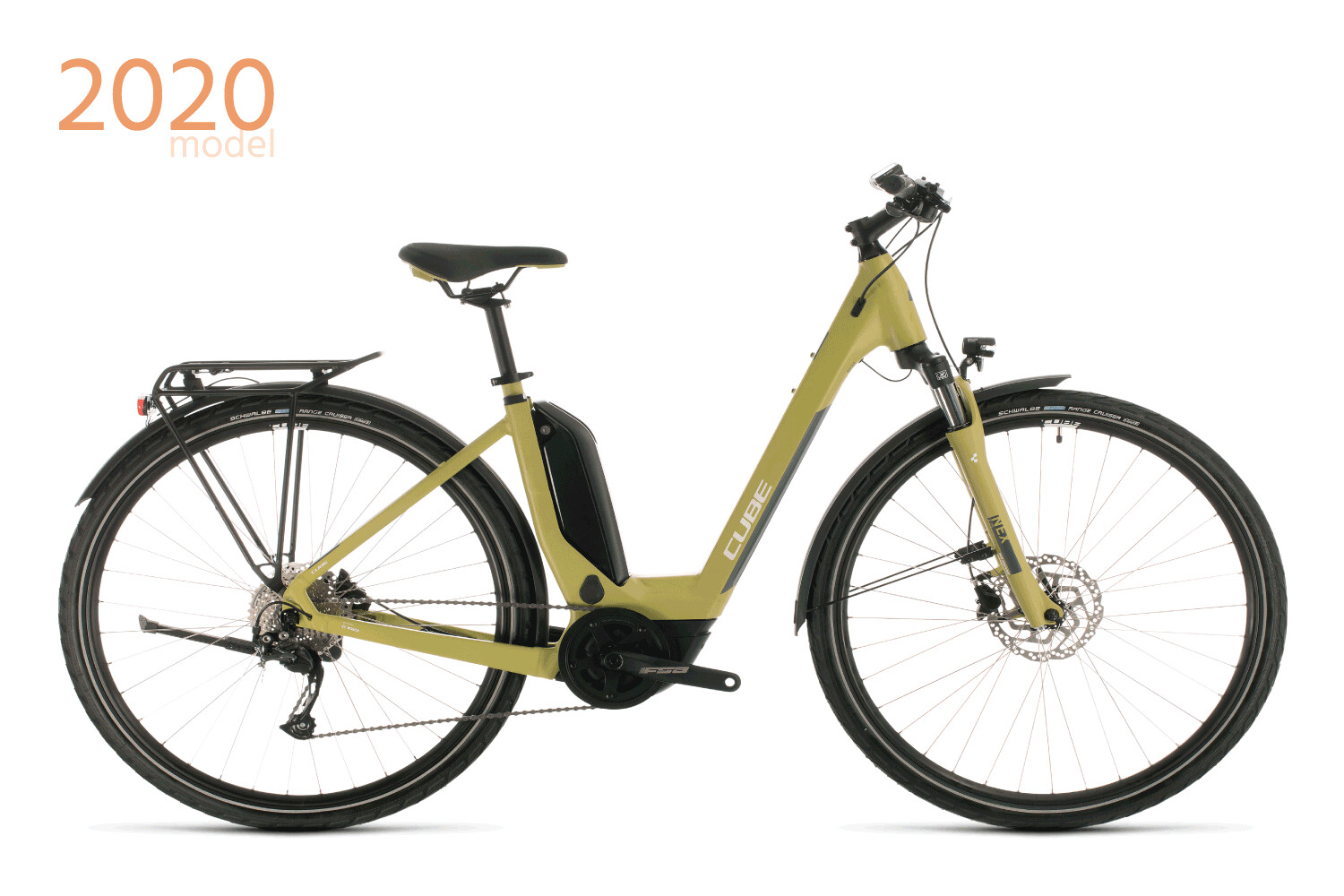

CUBE • TOURING HYBRID ONE 500 EASY ENTRY

SKU CUBE20-018
$3 499.00
Out of stock
1
Product Details

[tab name="Overview"]

Just jump on and ride…

Whatever you do, wherever you go, the Touring Hybrid ONE will get you there in comfort and style. Our affordable, adaptable hybrid tourer has everything you need to make riding your Bosch e-bike a pleasure. Whether you opt for the Easy Entry, Trapeze or Men's version, our engineers have carefully crafted the frame to ensure seamless integration of the Bosch drive unit and battery. They're in the optimum position for safe handling and sleek good looks so that, combined with our Efficient Comfort Geometry, you can rest assured that the Touring Hybrid ONE will be safe and easy to handle - and, like every CUBE bike, it's passed all our in-house lab tests. Smooth-shifting, easy-to-use Shimano 9-speed gears work flawlessly with Bosch's system to make every journey a breeze - and the internal cable routing ensures that the shifts will stay smooth and reliable for a long time to come, with minimal maintenance. Powerful hydraulic disc brakes offer predictable stopping in all weathers and the mudguards, lighting system, kickstand and luggage carrier ensure you're fully equipped for any eventuality.


Try the Cube TOURING HYBRID ONE 500 EASY ENTRY at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

No Compromise


Affordable it may be, but compromise isn't a word that our engineers understand. That's why every version of the Touring Hybrid ONE - Easy Entry, Trapeze and Men's - has been lavished with the same attention to detail, including our Smooth Welding process and internally routed cables for reduced maintenance.

Boost on Demand


Star of the show, of course, is the Bosch drive system and battery pack, which have been optimally sited in every frame version to keep the bike's centre of gravity low.

Comfort


That's important because, combined with our Efficient Comfort Geometry, it gives the Touring Hybrid ONE the kind of confidence-inspiring handling that'll you'll love straight away.

[tab name="Technical Details"]

Drivetrain

CHAIN KMC X9
PINION -
SHIFT LEVERS Shimano SL-M2010-9R, Rapidfire-Plus
CASSETTE Shimano CS-HG201, 11-36T
CRANKSET FSA CK-602, 38T, 175mm
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Shimano RD-M2000-SGS, 9-Speed

Wheels

FRONT HUB Shimano HB-TX505, QR, Centerlock
REAR HUB Shimano FH-TX505, QR, Centerlock
RIMS CUBE EX23, 36H, Disc, Tubeless Ready
SPOKES -
FRONT TIRE Schwalbe Range Cruiser, Active, K-Guard, 47-622
REAR TIRE Schwalbe Range Cruiser, Active, K-Guard, 47-622
TUBES -
WHEEL SIZE 28"

Cockpit

SADDLE Natural Fit Sequence Comfort
SEATPOST CUBE Performance Post, 27.2mm
SEATCLAMP CUBE Varioclose, 31.8mm
HANDLEBAR CUBE Rise Trail Bar, 700mm
STEM CUBE Performance Stem Pro, 31.8mm
GRIPS CUBE Performance Grip
HEADSET FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALS -

Brakes

FRONT BRAKE Shimano BR-MT200, Hydr. Disc Brake (180/160)
REAR BRAKE Shimano BR-MT200, Hydr. Disc Brake (180/160)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT AXA Compactline 20, 6-12V, DC
TAIL LIGHT Trelock LS 611 Duo Flat
MUDGUARDS ACID 53
LUGGAGE RACK -
KICKSTAND CUBEstand Cmpt
LOCK -

Frameset

FORK SR Suntour NEX-E25
REAR SHOCK -
FRONT TRAVEL 63 mm
REAR TRAVEL -
FRAME Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Semi-Integrated Carrier
FRAME COLOUR green´n´white

E-Bike

MOTOR Bosch Active Line Plus
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 40 | TOUR: 100 | SPORT: 180 | TURBO: 270
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 35 | TOUR: 40 | SPORT: 45 | TURBO: 50
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Harmonious agile
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes
MOTOR WEIGHT approx. 3.2 kg (7.1 lbs)
USER INTERFACE / DISPLAY Bosch Purion
RIDING MODES 5 modes (Off, Eco, Tour, Sport, Turbo)
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerPack 500 (36V/13.4Ah | 500Wh | 2.6kg)
RANGE up to 150 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 2A Compact Charger
CHARGING TIME 3.5 hrs to 50 % | 7.5 hrs to 100%

Weight

WEIGHT 23.2 kg (51.2 lbs)
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE 46 cm
A FRAME HEIGHT 450 mm
B SEAT TUBE ANGLE 73°
C SEAT TUBE OFFSET -
D SEAT ANGLE -
E HEAD TUBE LENGTH 140 mm
F HEAD TUBE ANGLE 69.5°
G TOP TUBE LENGTH (HORIZONTAL) 571 mm
H CHAINSTAY LENGTH 480 mm
I BB DROP -70 mm
J WHEEL BASE 1107 mm
K STACK 627 mm
L REACH 380 mm
M STAND-OVER HEIGHT 396 mm
BB HEIGHT -
CRANK LENGTH -
STEM LENGTH -
SEATPOST LENGTH -
SADDLE WIDTH -
HANDLEBAR WIDTH -
TOTAL LENGHT -
TRAIL -
FORK RAKE -

bike geometry picture
