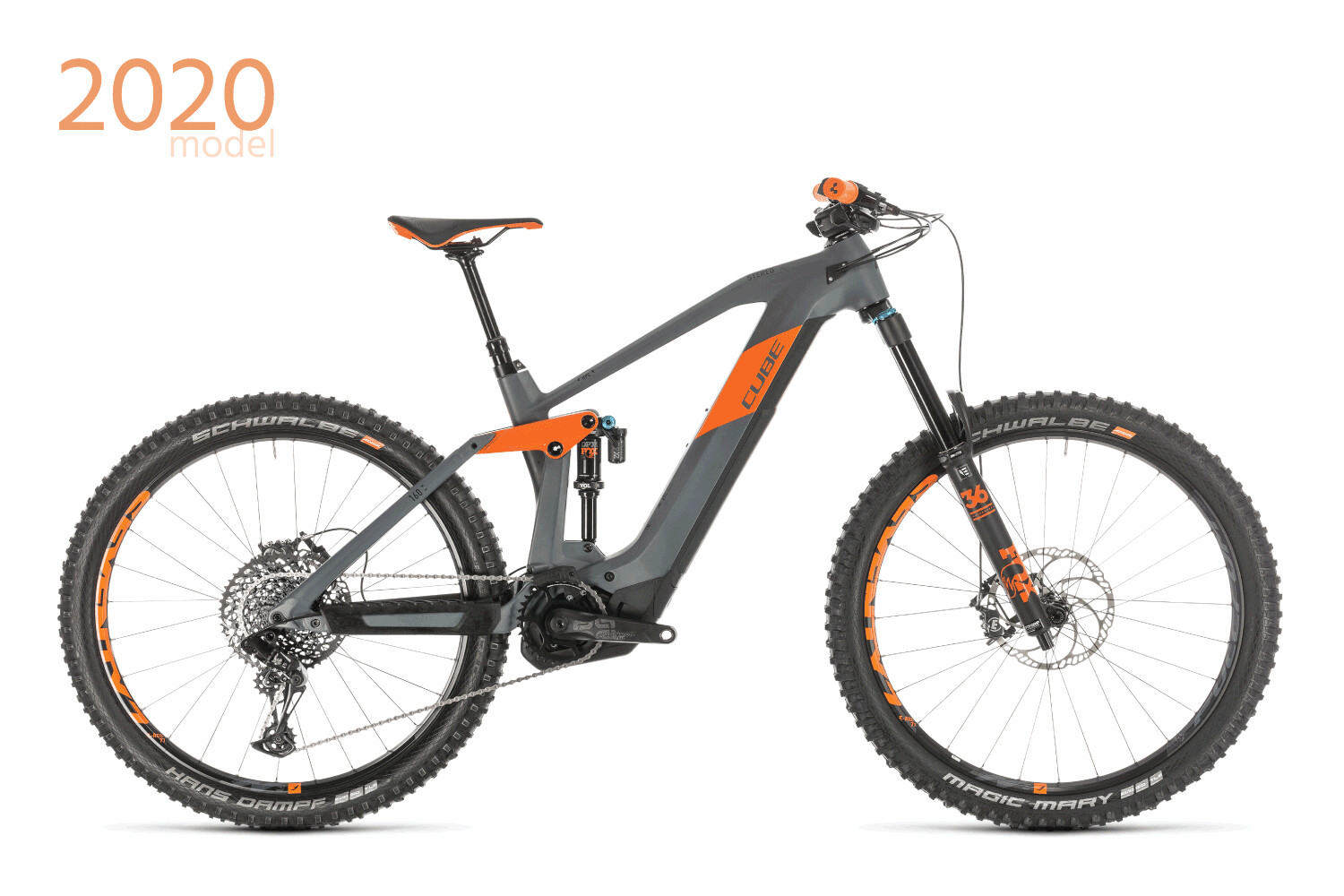

CUBE • STEREO HYBRID 160 HPC TM 625 27.5

SKU CUBE20-014
$8 199.00
In stock
1
Product Details

[tab name="Overview"]

Do you even enduro, bro?

The brand-new Stereo Hybrid 160 HPC TM means you've no excuse not to. Combining the smooth, tractable power of Bosch's fourth-generation drive system with a box-fresh frame, Fox suspension and Sram's 12-speed transmission, it's got the aggressive geometry and progressive suspension kinematics you need to smash the descents and the gear range and power to get you back up the climbs faster than ever. We threw all our Enduro World Series experience at the new frame design, combined with our engineering team's carbon construction know-how and years of figuring out how to get the best from Bosch's drive systems. The result is pretty special. The carbon main frame's Modular Battery System hides the Bosch power unit inside the down tube, protected from impact, dirt and water ingress by a shock-resistant, quick-release cover with a built-in, hidden lock. It's not just neat, it's also a higher capacity battery than before, which means you can ride further, faster and harder than before. The Boost 148 rear end, oversized bearings and large 1.5in steerer all contribute to razor-sharp handling, no matter how hard you ride. And there's even room for a bottle cage mount, so you can pack extra hydration or a tool kit for those long days out in the mountains. A Fox Float DPX2 Performance shock with trunnion mount pairs with a Fox 36 Float Performance fork for controlled, smooth and progressive boulder-chewing suspension performance, while Magura's MT7 hydraulic disc brakes with 203mm rotors and Schwalbe Magic Mary and Hans Dampf Super Gravity tyres running on Fulcrum E-Metal wheels ensure you're always in full control. And as for drive, you've got seamless Bosch assistance delivered via Sram's positive-shifting, wide-ranging NX Eagle 12-speed gearset. We even included a remote dropper post, so you're all out of excuses for not riding that new, tight and steep line. Add it all up and it means one thing: the Stereo Hybrid 160 HPC TM has got your back, bro.


Try the Cube STEREO HYBRID 160 HPC TM 625 27.5 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

Rewrites The Rules


Some people laughed when we said we could build a hybrid enduro bike capable of taking on the world's toughest EWS trails. Well, they're not laughing now. The new Stereo Hybrid 160 HPC rewrites the rules, blending the big-hit ability of a dialled big-mountain machine with the ride-anywhere versatility of Bosch's fourth-generation drive system.

No Mountain Too High, or Too Steep


There's literally no mountain too high, or too steep, for this bike. Key to its success is a brand-new main frame constructed from carbon. The versatility of this material allowed our engineers to create an entirely new setup - the Modular Battery System - to house the Bosch power unit entirely within the down tube.

Hidden and Protected


Hidden by a double-layer cover with shock protection, push-button access and a hidden lock, the new system has freed up enough space for the Stereo Hybrid 160 HPC to accommodate a larger capacity 625Wh battery, for significantly extended range - so you can ride further, higher and faster, confident that you've got the juice to keep going.

Who's The Boss


The trunnion shock mount, big bearings and Boost 148 rear axle of the aluminium rear triangle work with the 1.5in head tube to deliver efficient power transfer and millimetre-perfect steering precision, whilst aggressive geometry gives you the advantage you need to show the trails exactly who's boss. We even remembered to add a bottle cage mount and make it chain guide compatible, so you can tailor your Stereo Hybrid 160 HPC exactly the way you want it. Enduro is exciting, but Bosch hybrid power takes it to a new level. Are you up for it?

[tab name="Technical Details"]

Drivetrain

CHAIN Sram NX Eagle™
PINION -
SHIFT LEVERS Sram NX Eagle™ Trigger, Single Click
CASSETTE Sram XG-1275, 10-50T
CRANKSET e*thirteen Plus Crank, 36T, 165mm
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Sram NX Eagle™, 12-Speed

Wheels

FRONT HUB -
REAR HUB -
RIMS -
SPOKES -
FRONT TIRE Schwalbe Magic Mary Kevlar, Addix Soft, Super Gravity, Tubeless Easy, 2.60
REAR TIRE Schwalbe Hans Dampf Kevlar, Addix Speedgrip, Super Gravity, Tubeless Easy, 2.60
TUBES -
WHEEL SIZE 27.5"

Cockpit

SADDLE Natural Fit Venec
SEATPOST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
SEATCLAMP CUBE Srewlock Semi Integrated, 34.9mm
HANDLEBAR Newmen Evolution SL 318.25, 800mm
STEM CUBE Performance Stem E-MTB, 31.8mm
GRIPS CUBE Race Grip 31mm, 1-Clamp
HEADSET FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALS -

Brakes

FRONT BRAKE Magura MT7, Hydr. Disc Brake (203/203)
REAR BRAKE Magura MT7, Hydr. Disc Brake (203/203)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm
REAR SHOCK Fox Float DPX2 EVOL, 205x60mm, Open(Adjustable)/Medium/Firm Mode, Trunnion Mount
FRONT TRAVEL 170 mm
REAR TRAVEL 205 mm
FRAME C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
FRAME COLOUR grey´n´orange

E-Bike

MOTOR Bosch Performance Line CX (MY20)
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 60 | TOUR: 140 | SPORT/eMTB: 140-340 | TURBO: 340
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 40 | TOUR: 50 | eMTB: 75 | TURBO: 75
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Very Sporty
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes (dynamic)
MOTOR WEIGHT approx. 2.9 kg (6.4 lbs)
USER INTERFACE / DISPLAY Bosch Kiox
RIDING MODES 5 modes (OFF, ECO, TOUR, eMTB, TURBO)
CONNECTIVITY USB charging option
THROTTLE -
BATTERY Bosch PowerTube 625 (36V/16.7Ah | 625Wh | 3.5kg)
RANGE up to 120 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 4A
CHARGING TIME 2.1 hrs to 50 % | 4.9 hrs to 100%

Weight

WEIGHT 23.9 kg (52.7 lbs)
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE 16'' 18'' 20'' 22''
A FRAME HEIGHT 375 mm 420 mm 470 mm 520 mm
B SEAT TUBE ANGLE 75.5° 75.5° 75.5° 75.5°
C SEAT TUBE OFFSET - - - -
D SEAT ANGLE - - - -
E HEAD TUBE LENGTH 105 mm 112 mm 122 mm 142 mm
F HEAD TUBE ANGLE 65° 65° 65° 65°
G TOP TUBE LENGTH (HORIZONTAL) 568 mm 590 mm 613 mm 638 mm
H CHAINSTAY LENGTH 441.5 mm 441.5 mm 441.5 mm 441.5 mm
I BB DROP 12.5 mm 12.5 mm 12.5 mm 12.5 mm
J WHEEL BASE 1183 mm 1206 mm 1230 mm 1259 mm
K STACK 598 mm 605 mm 614 mm 632 mm
L REACH 420 mm 440 mm 460 mm 480 mm
M STAND-OVER HEIGHT - - - -
BB HEIGHT - - - -
CRANK LENGTH - - - -
STEM LENGTH - - - -
SEATPOST LENGTH - - - -
SADDLE WIDTH - - - -
HANDLEBAR WIDTH - - - -
TOTAL LENGHT - - - -
TRAIL - - - -
FORK RAKE - - - -

bike geometry picture
