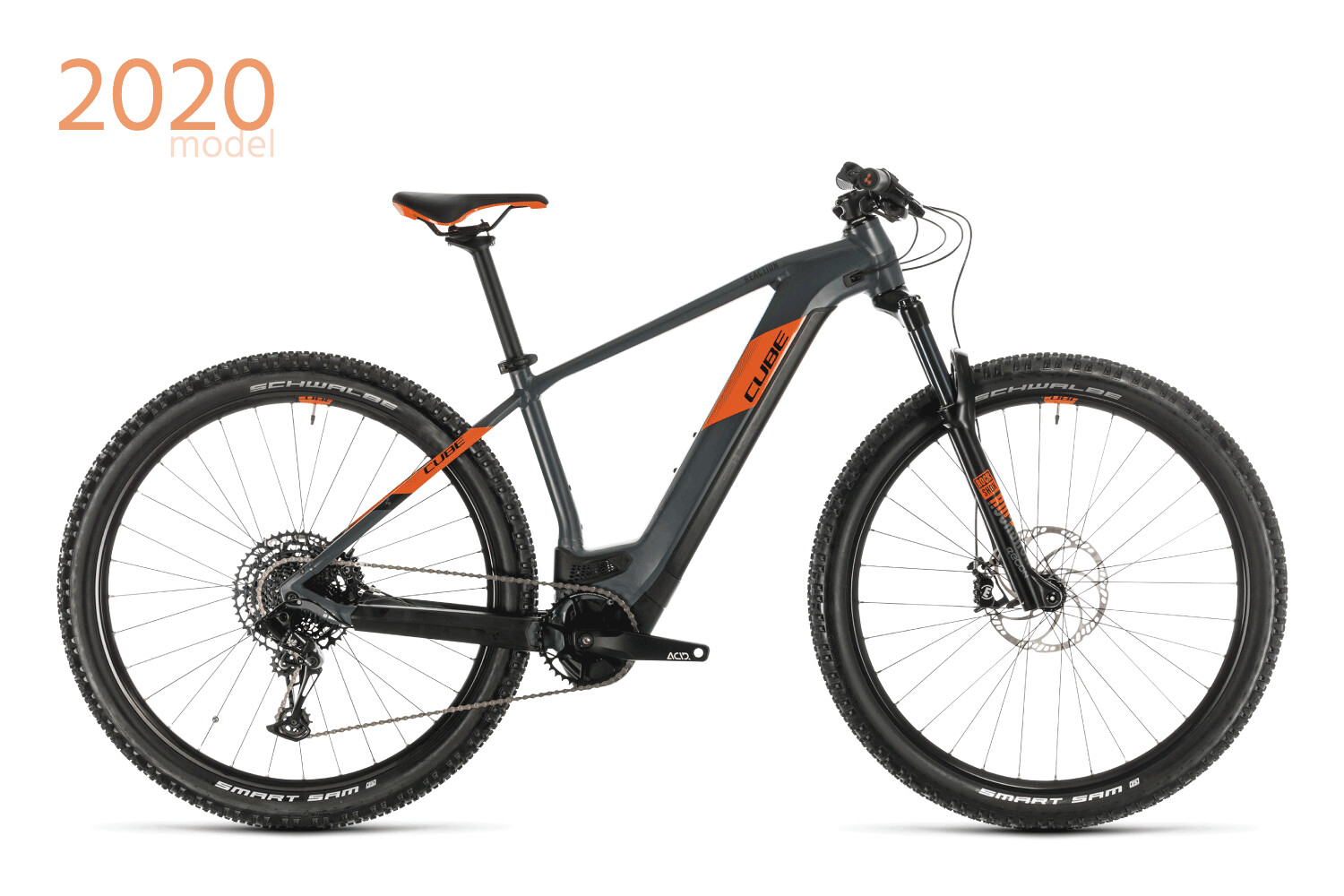

CUBE • REACTION HYBRID SL 625 29

SKU CUBE20-017
$5 299.00
In stock
1
Product Details

[tab name="Overview"]

Wherever Your Curiosity Takes You

The SL tag isn't one that we dish out lightly. In the case of our brand-new Reaction Hybrid SL, the combination of the completely redesigned aluminium frame and a selection of light, smooth and desirable components means that it's thoroughly earned. More than just an object of beauty, it's a design marvel in its own right - and more desirable than ever, thanks to the fourth-generation Bosch CX drive unit. Our engineering team started from scratch with this bike, developing an all-new Modular Battery System which houses the power unit inside a custom-designed, gravity cast down tube, out of the way of dust, dirt and water. It also enables the use of an even higher capacity battery, meaning that you can ride further and for longer than ever before. Details like the 1.5in head tube, oversized chain stays and Boost rear axle ensure that every watt of the Bosch drive unit's power is efficiently transferred to the rear wheel, while revised Agile Ride Geometry designed around the 120mm RockShox Recon air fork serves up the ideal blend of agility when you want it, and stability when you need it. There's even provision for an easy stealth dropper post upgrade, should your riding ambitions demand it. Powerful Magura hydraulic disc brakes - with a 203mm rotor at the front for even more power under prolonged, heavy braking - and extra-wide, grippy Schwalbe tyres ensure you're always in complete control. And, of course, the smooth and seamless Bosch CX drive unit and Kiox controller deliver pedal-enhancing torque to the rear wheel via Sram's NX Eagle 12-speed transmission. It all means you've got the range, power and control to ride wherever your curiosity takes you - and keep coming back for more. Ride further, ride faster and ride more often. Why not?


Try the Cube REACTION HYBRID SL 625 29 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

No Compromise


CUBE's dedicated engineering team is never satisfied. For the brand-new Reaction Hybrid 29 - powered by Bosch's fourth-generation drive system - they went back to the drawing board with a clean sheet of paper and a simple mission: to build the best possible hybrid hardtail frame.

Boost on Demand


Starting with the new Modular Battery System, they designed a new gravity cast down tube to completely enclose the Bosch power unit under an easily accessed cover.

Lots of Juice


It doesn't just look great, it also frees up enough space for bottle cage bosses and the option of a larger capacity battery for even more range.
Oversized chain stays, an X12 Boost rear axle and 1.5in head tube work together to transfer the smooth, powerful Bosch drive unit's torque to the rear wheel.

Confidence and Design


Our widely acclaimed Agile Ride Geometry is tweaked and refined to work brilliantly with a 120mm fork, giving handling that builds confidence when you need it and delivers inspiration when you want it.
Internal cable routing - including provision for a stealth dropper post upgrade - complements the frame's svelte looks, and we even designed a trapeze version. Add it all up and it's clear to see: there's a Reaction Hybrid 29 with your name on it.

[tab name="Technical Details"]

Drivetrain

CHAIN Sram SX Eagle™
PINION -
SHIFT LEVERS Sram NX Eagle™ Trigger, Single Click
CASSETTE Sram PG-1210 Eagle™, 11-50T
CRANKSET ACID E-Crank, 38T, 175mm
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Sram NX Eagle™, 12-Speed

Wheels

FRONT HUB Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB Shimano FH-MT400-B, 12mm , Boost, Centerlock
RIMS CUBE EX30, 32H, Disc, Tubeless Ready
SPOKES -
FRONT TIRE Schwalbe Smart Sam, Active, 2.60
REAR TIRE Schwalbe Smart Sam, Active, 2.60
TUBES -
WHEEL SIZE 28"

Cockpit

SADDLE Natural Fit Sequence+
SEATPOST CUBE Performance Post, 30.9mm
SEATCLAMP CUBE Varioclose, 34.9mm
HANDLEBAR Newmen Evolution 318.10, 720mm
STEM CUBE Performance Stem, 31.8mm
GRIPS CUBE Race Grip 31mm, 1-Clamp
HEADSET FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALS -

Brakes

FRONT BRAKE Magura MT Thirty, Front 4-Piston/ Rear 4-Piston, Hydr. Disc Brake (203/180)
REAR BRAKE Magura MT Thirty, Front 4-Piston/ Rear 4-Piston, Hydr. Disc Brake (203/180)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK RockShox Recon RL Air, Tapered, 15x110mm, eMTB Approved, 120mm
REAR SHOCK -
FRONT TRAVEL -
REAR TRAVEL -
FRAME Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
FRAME COLOUR grey´n´orange

E-Bike

MOTOR Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
GEAR TYPE -
SUPPORT LEVEL (%) -
MAXIMUM POSSIBLE DRIVE TORQUE -
POWER -
MAXIMUM CADENCE -
START-UP BEHAVIOUR -
SPEED SUPPORT UP TO -
GEAR SHIFT DETECTION -
MOTOR WEIGHT -
USER INTERFACE / DISPLAY Bosch Kiox
RIDING MODES -
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerTube 625 -
RANGE -
CHARGER Bosch 2A
CHARGING TIME -

Weight

WEIGHT 23.3 kg (51.4 lbs)
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE 15" 17" 19" 21" 23"
A FRAME HEIGHT 375 mm 405 mm 450 mm 495 mm 545 mm
B SEAT TUBE ANGLE 74° 74° 74° 74° 74°
C SEAT TUBE OFFSET - - - - -
D SEAT ANGLE - - - - -
E HEAD TUBE LENGTH 100 mm 105 mm 110 mm 120 mm 136 mm
F HEAD TUBE ANGLE 67.5° 68° 68° 68° 68°
G TOP TUBE LENGTH (HORIZONTAL) 580 mm 585 mm 605 mm 625 mm 645 mm
H CHAINSTAY LENGTH 460 mm 460 mm 460 mm 460 mm 460 mm
I BB DROP -65 mm -65 mm -65 mm -65 mm -65 mm
J WHEEL BASE 1146 mm 1146 mm 1166 mm 1187 mm 1209 mm
K STACK 628 mm 635 mm 639 mm 649 mm 663 mm
L REACH 403 mm 405 mm 424 mm 441 mm 456 mm
M STAND-OVER HEIGHT 750 mm 775 mm 800 mm 832 mm 870 mm
BB HEIGHT - - - - -
CRANK LENGTH - - - - -
STEM LENGTH - - - - -
SEATPOST LENGTH - - - - -
SADDLE WIDTH - - - - -
HANDLEBAR WIDTH - - - - -
TOTAL LENGHT - - - - -
TRAIL - - - - -
FORK RAKE - - - - -

bike geometry picture
