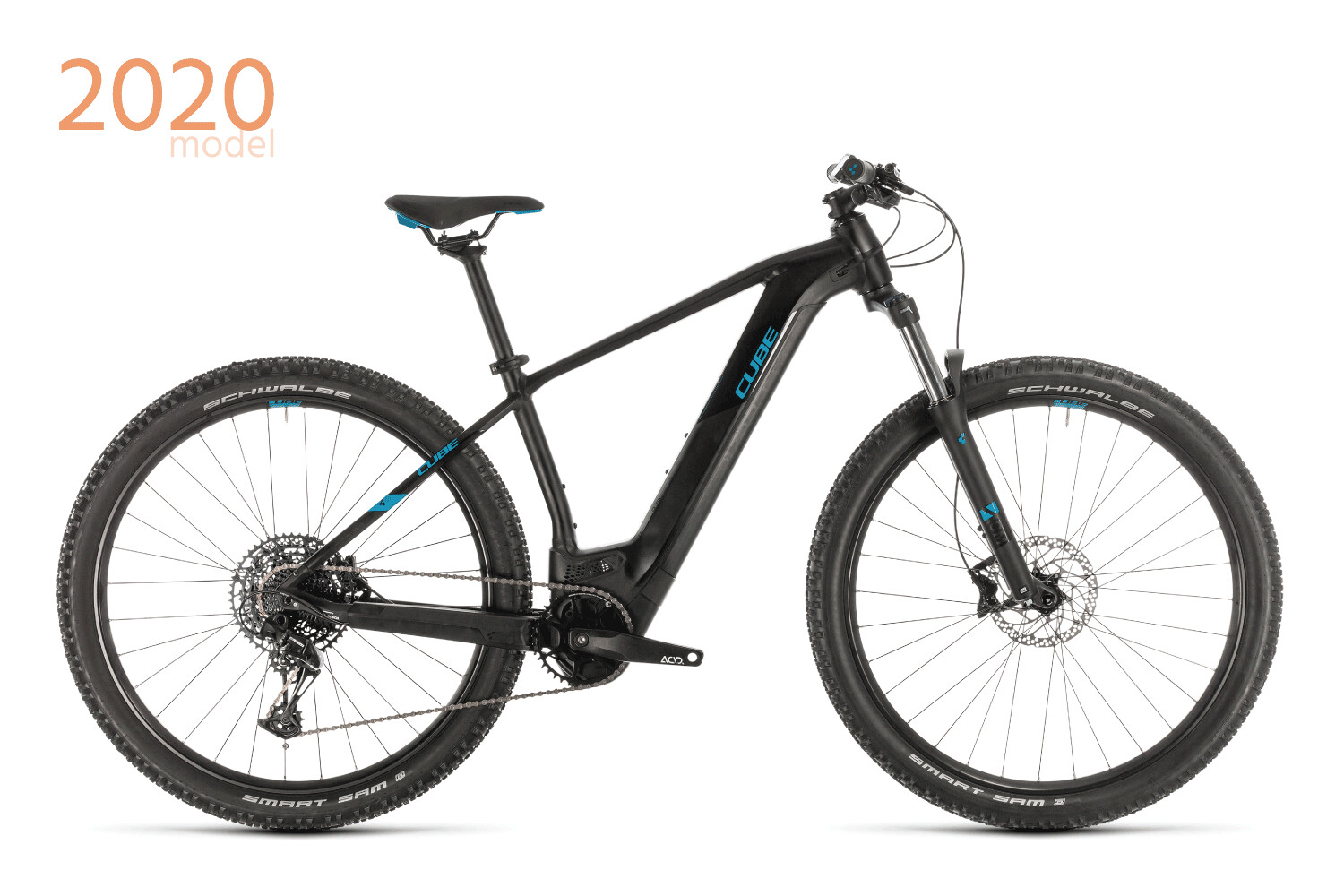

CUBE • REACTION HYBRID EX 625 29

SKU CUBE20-015
$4 599.00
In stock
1
Product Details

[tab name="Overview"]

Faster and Higher Than You'd Think Possible

One of the defining characteristics of our designers is that they never rest on their laurels. With the brand-new, fourth-generation Bosch CX-powered Reaction Hybrid EX, they've pulled out all the stops to build a Bosch e-MTB that will help redefine what's possible from a hybrid hardtail. The frame is a masterpiece of elegantly functional engineering, combining sleek good looks with incredible handling, unmatched practicality and the superb strength and durability that you'd expect as a result of our extensive in-house testing. A brand-new Modular Battery System encloses the Bosch power unit inside the gravity cast down tube and allows for even more range, whilst oversized chain stays, a Boost rear axle and a 1.5in head tube ensure that the power delivery is as efficient as it is smooth. A dropper post-ready seat tube, revised geometry and elegant Smooth Welding complete the picture. To make the most of this amazing new frame, we selected components that offer great value and performance. Up front, the Suntour XCM34-Boost fork delivers accurate steering and 120mm of trail-smoothing travel, whilst 2.6in Schwalbe tyres serve up unbelievable grip and comfort. Sram's peerless SX Eagle 12-speed transmission works seamlessly with the Bosch CX drive unit to help power you further, faster and higher than you'd think possible, and powerful Shimano hydraulic disc brakes put you in full control, no matter what the trail or weather dishes out. You'll be amazed what this bike can do for your riding. We were - and we were the ones who designed it.


Try the Cube REACTION HYBRID EX 625 29 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

A New Frame Design


CUBE's dedicated engineering team is never satisfied. For the brand-new Reaction Hybrid 29 - powered by Bosch's fourth-generation drive system - they went back to the drawing board with a clean sheet of paper and a simple mission: to build the best possible hybrid hardtail frame. Starting with the new Modular Battery System, they designed a new gravity cast down tube to completely enclose the Bosch power unit under an easily accessed cover.

Looks Stunning


It doesn't just look great, it also frees up enough space for bottle cage bosses and the option of a larger capacity battery for even more range. Oversized chain stays, an X12 Boost rear axle and 1.5in head tube work together to transfer the smooth, powerful Bosch drive unit's torque to the rear wheel.

Delivers Inspiration


Our widely acclaimed Agile Ride Geometry is tweaked and refined to work brilliantly with a 120mm fork, giving handling that builds confidence when you need it and delivers inspiration when you want it.

Fills All Boxes


Internal cable routing - including provision for a stealth dropper post upgrade - complements the frame's svelte looks. Add it all up and it's clear to see: there's a Reaction Hybrid 29 with your name on it.

[tab name="Technical Details"]

Drivetrain

CHAIN Sram SX Eagle™
PINION -
SHIFT LEVERS Sram SX Eagle™ Trigger, Single Click
CASSETTE Sram PG-1210 Eagle™, 11-50T
CRANKSET ACID E-Crank, 38T, 175mm
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Sram SX Eagle™, 12-Speed

Wheels

FRONT HUB Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB Shimano FH-MT400-B, 12mm , Boost, Centerlock
RIMS CUBE EX30, 32H, Disc, Tubeless Ready
SPOKES -
FRONT TIRE Schwalbe Smart Sam, Active, 2.60
REAR TIRE Schwalbe Smart Sam, Active, 2.60
TUBES -
WHEEL SIZE 28"

Cockpit

SADDLE Natural Fit Sequence
SEATPOST CUBE Performance Post, 30.9mm
SEATCLAMP CUBE Varioclose, 34.9mm
HANDLEBAR CUBE Rise Trail Bar, 700mm
STEM CUBE Performance Stem, 31.8mm
GRIPS CUBE Race Grip 31mm, 1-Clamp
HEADSET FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALS -

Brakes

FRONT BRAKE Shimano BR-MT420 Hydr. Disc Brake (203)
REAR BRAKE Shimano BR-MT400 Hydr. Disc Brake (180)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK SR Suntour XCM34 Coil, Tapered, 15x110mm, Lockout
REAR SHOCK -
FRONT TRAVEL 120 mm
REAR TRAVEL -
FRAME Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
FRAME COLOUR black´n´blue

E-Bike

MOTOR Bosch Performance Line CX (MY20)
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 60 | TOUR: 140 | SPORT/eMTB: 140-340 | TURBO: 340
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 40 | TOUR: 50 | eMTB: 75 | TURBO: 75
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Very Sporty
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes (dynamic)
MOTOR WEIGHT approx. 2.9 kg (6.4 lbs)
USER INTERFACE / DISPLAY Bosch Purion
RIDING MODES 5 modes (OFF, ECO, TOUR, eMTB, TURBO)
CONNECTIVITY USB charging option
THROTTLE -
BATTERY Bosch PowerTube 625 (36V/16.7Ah | 625Wh | 3.5kg)
RANGE up to 160 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 2A Compact Charger
CHARGING TIME 4.2 hrs to 50 % | 8.8 hrs to 100%

Weight

WEIGHT 23.8 kg (52.47 lbs)
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE 15" 17" 19" 21" 23"
A FRAME HEIGHT 375 mm 405 mm 450 mm 495 mm 545 mm
B SEAT TUBE ANGLE 74° 74° 74° 74° 74°
C SEAT TUBE OFFSET - - - - -
D SEAT ANGLE - - - - -
E HEAD TUBE LENGTH 100 mm 105 mm 110 mm 120 mm 136 mm
F HEAD TUBE ANGLE 67.5° 68° 68° 68° 68°
G TOP TUBE LENGTH (HORIZONTAL) 580 mm 585 mm 605 mm 625 mm 645 mm
H CHAINSTAY LENGTH 460 mm 460 mm 460 mm 460 mm 460 mm
I BB DROP 65 mm -65 mm -65 mm -65 mm -65 mm
J WHEEL BASE 1146 mm 1146 mm 1166 mm 1187 mm 1209 mm
K STACK 628 mm 635 mm 639 mm 649 mm 663 mm
L REACH 403 mm 405 mm 424 mm 441 mm 456 mm
M STAND-OVER HEIGHT 750 mm 775 mm 800 mm 832 mm 870 mm
BB HEIGHT - - - - -
CRANK LENGTH - - - - -
STEM LENGTH - - - - -
SEATPOST LENGTH - - - - -
SADDLE WIDTH - - - - -
HANDLEBAR WIDTH - - - - -
TOTAL LENGHT - - - - -
TRAIL - - - - -
FORK RAKE - - - - -

bike geometry picture
