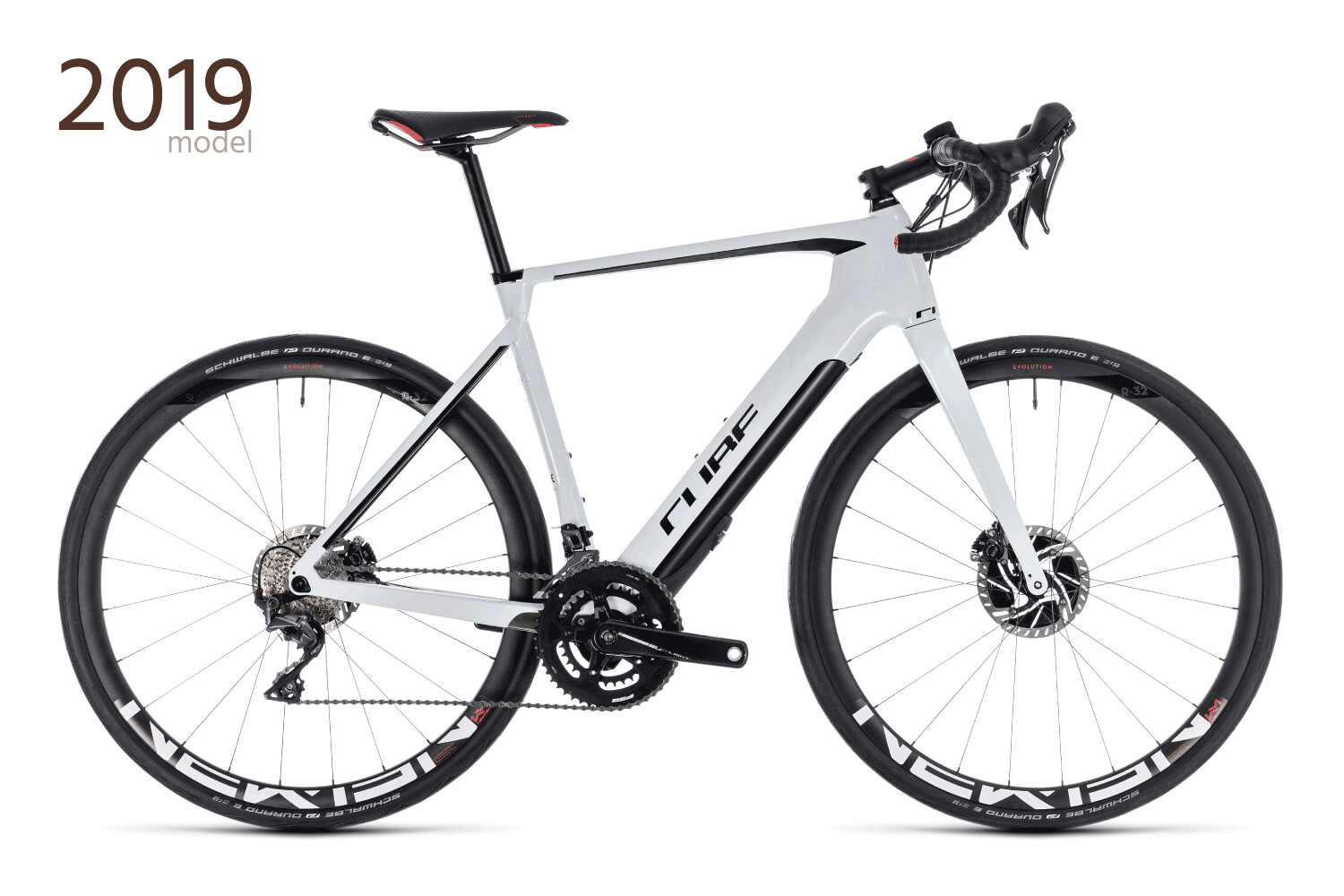

CUBE • AGREE HYBRID C:62 SL Disc

SKU CUBE19-011
$7 199.00
In stock
1
Product Details

[tab name="Overview"]

The revolution in road biking.

The Agree Hybrid C:62 SL Disc ushers in a quiet revolution in road biking. Blending the elegance and simplicity of classic road bike design with the versatility and adaptability of an advanced pedal assist drive system, it opens up new frontiers for any rider. Tackle any climb, ride further or ride more... it's all there for the taking. Concealed inside the sophisticated and sleek carbon frame is the unique Fazua drive unit and battery. Fully removable, completely self-contained and working seamlessly with the Shimano Ultegra 2x11 transmission, it will redefine your expectations of what's possible in an e-bike. Add the hydraulic disc brakes for reliable all-weather stopping, and the Agree C:62 SL Disc is your ticket to ride.


Try the Cube AGREE HYBRID C:62 SL Disc at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Technology"]

Advanced Twin Mold


This technique uses a complete core to provide the perfect frame form during the lay-up process. As with the Twin Mold technology, precise inserts are used to ensure extra strength at high-stress frame points. This combination offers maximum control over fibre orientations during the lay-up and production process. The Advanced Twin Mold high-tech carbon manufacturing process translates to outstanding product safety and quality together with optimum weight and stiffness characteristics.

Frame Safe System


To protect our high-end aluminium frames from damage, they are built with the CUBE Frame Save System replaceable derailleur hanger. The mounting thread is in the hanger and not in the frame as usual. In case of a crash, this hanger can be easily and quickly replaced by a new one.

Integrated Cable Routing


Internally routed cables offer many advantages. Cables are protected from dirt for longer life, weight is saved thanks to the absence of external housing and the bike has a clean, sleek appearance.

Tapered Steerer


This steerer tube design is stiffer than a conventional straight steerer and yields a more secure ride feel even in difficult terrain. Minimal flex at the front of the frame means the greatest possible steering precision. With the larger steerer, the forks become more rigid. At the same time weight is saved due to the absence of bearing shells as the lower bearing is fully integrated into the head tube. On all of our CUBE carbon models the upper bearing shells are also directly in the frame, so that once more a few grams are saved and the energy transfer is very direct.

Wet Paint Surface


On polished, brushed aluminium and all HPC frames, the logos and graphics are applied in multi-layer wet paint. We use this surface treatment technology mainly to save weight.

[tab name="Specifications"]

Drivetrain

CHAIN Shimano CN-HG601-11
PINION -
SHIFT LEVERS Shimano Ultegra ST-R8020
CASSETTE Shimano 105 CS-5800, 11-32T
CRANKSET FSA CK-8685 Carbon, 50x34T
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR Shimano Ultegra FD-R8000-F
REAR DERAILLEUR Shimano Ultegra RD-R8000-DGS, 11-Speed

Wheels

FRONT HUB -
REAR HUB -
RIMS Newmen Evolution SL R.32, 24/24 Spokes, 12x100mm / 12x142mm, Tubeless Ready
SPOKES -
FRONT TIRE Schwalbe Durano E, Kevlar, RaceGuard, 32-622
REAR TIRE Schwalbe Durano E, Kevlar, RaceGuard, 32-622
TUBES -
WHEEL SIZE -

Cockpit

SADDLE Selle Royal Asphalt
SEATPOST CUBE Prolight, 27.2mm
SEATCLAMP CUBE Aero, Semi-Integrated
HANDLEBAR CUBE Gravel Race Bar
STEM CUBE Performance Stem Pro, 31.8mm
GRIPS -
HEADSET FSA I-t, Top Integrated 1 1/8", Bottom Integrated 1 1/4"
PEDALS -

Brakes

FRONT BRAKE Shimano Ultegra BR-R8070, Hydr. Disc Brake, Flat Mount (160/160)
REAR BRAKE Shimano Ultegra BR-R8070, Hydr. Disc Brake, Flat Mount (160/160)
BRAKE LEVER -
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK CUBE CSL Evo Aero C:62 Technology, 1 1/8" / 1 1/4" Tapered, Flat Mount, 12x100mm
REAR SHOCK -
FRONT TRAVEL -
REAR TRAVEL -
FRAME C:62 Advanced Twin Mold Technology Aero Frame, Flat Mount Disc, Road Comfort Geometry, AXH, 12x142mm
FRAME COLOUR white´n´black

E-Bike

MOTOR FAZUA Evation 1.0 Drive Pack, 60Nm
GEAR TYPE -
SUPPORT LEVEL (%) -
MAXIMUM POSSIBLE DRIVE TORQUE -
POWER 250W (400 W max)
MAXIMUM CADENCE -
START-UP BEHAVIOUR -
SPEED SUPPORT UP TO -
GEAR SHIFT DETECTION -
MOTOR WEIGHT 1.92 kg
USER INTERFACE / DISPLAY FAZUA Evation 1.0 Remote, 31.8mm Road Bar Clamp
RIDING MODES No assistance, BreezeMode, RiverMode, RocketMode
CONNECTIVITY -
THROTTLE -
BATTERY FAZUA Evation 1.0 Battery, 36V/250Wh, 1.4 kg
RANGE -
CHARGER Evation 1.0 Charger
CHARGING TIME -

Weight

WEIGHT 13.5 kg (29.76 lbs)
TOTAL PERM WEIGHT -

* Specifications are subject to change without notice

[tab name="Geometry"]

FRAME SIZE 53 cm 56 cm 59 cm
A FRAME HEIGHT 490 mm 520 mm 550 mm
B SEAT TUBE ANGLE 74.5° 73.5° 72.5°
C SEAT TUBE OFFSET - - -
D SEAT ANGLE - - -
E HEAD TUBE LENGTH 137 mm 167 mm 197 mm
F HEAD TUBE ANGLE 71.5° 72.5° 72.5°
G TOP TUBE LENGTH (HORIZONTAL) 537 mm 560 mm 583 mm
H CHAINSTAY LENGTH 430 mm 430 mm 430 mm
I BB DROP - - -
J WHEEL BASE 1016 mm 1020 mm 1031 mm
K STACK - - -
L REACH - - -
M STAND-OVER HEIGHT 483 mm 514 mm 544 mm
BB HEIGHT - - -
CRANK LENGTH - - -
STEM LENGTH - - -
SEATPOST LENGTH - - -
SADDLE WIDTH - - -
HANDLEBAR WIDTH - - -
TOTAL LENGHT - - -
TRAIL - - -
FORK RAKE - - -

bike geometry picture
