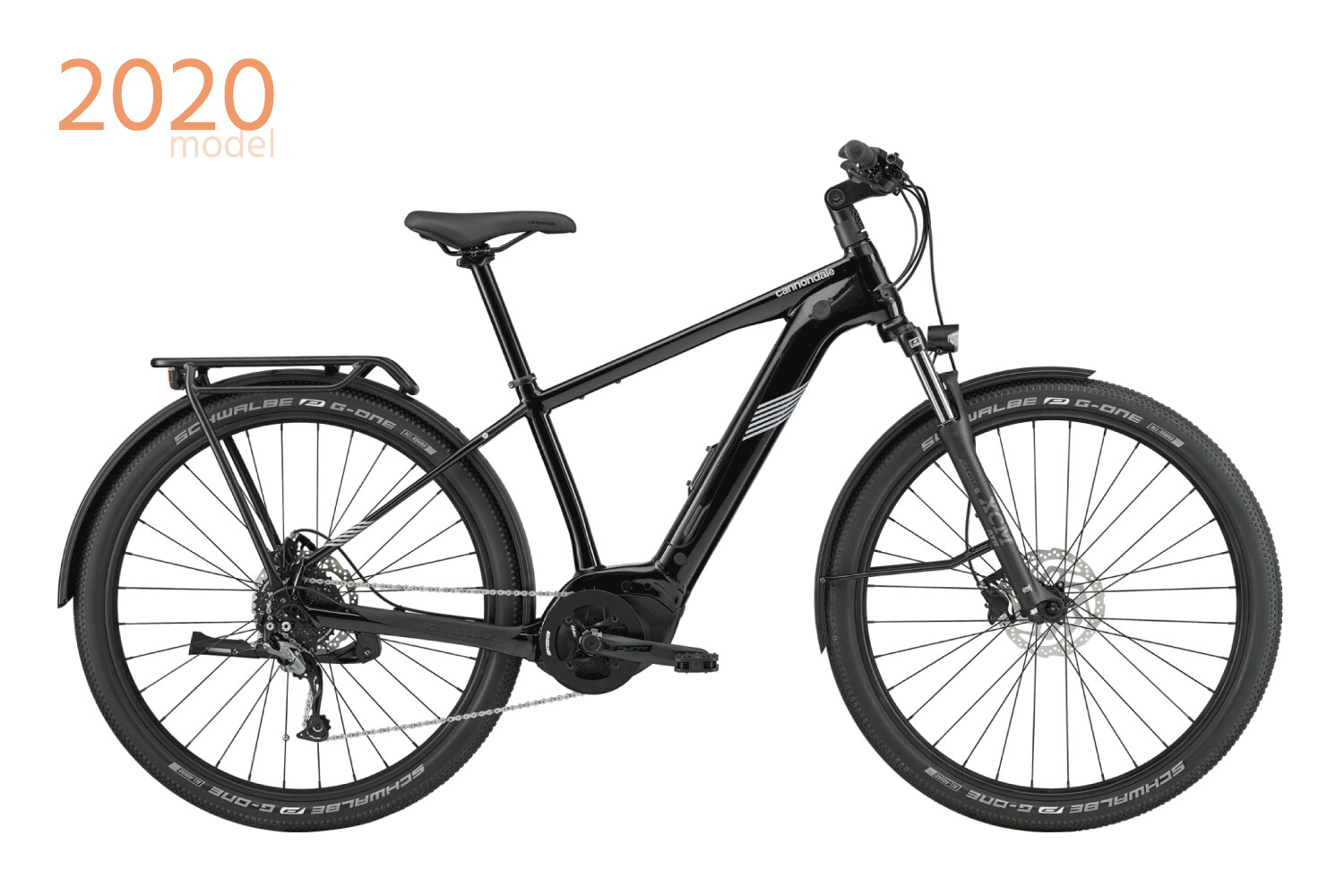

CANNONDALE • Tesoro Neo X 3

SKU CANN20-002
$4 250.00
In stock
1
Product Details

[tab name="Overview"]

Go wild.

This on-road/off-road e-bike is a fully loaded trekking machine. Get out of the rat-race and into the wilderness.

Highlights
  • Light, durable SmartForm C2 Alloy frame with 100mm travel fork
  • Shimano 9-speed drivetrain with hydraulic disc brakes
  • Bosch Active Line Plus 250W drive-unit | 400Wh battery


Where it thrives

Gravel roads, the open road


What it's built for

Speed, efficiency, comfort



Try the Cannondale Tesoro Neo X 3 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

Bosch Active Line Plus


The Bosch Active Line Plus drive unit is perfect for urban and adventure riding. It's silent, powerful and light, with virtually no motor resistance above the 32 km/h support limit.

SmartForm C2 Alloy


Aluminum construction that's a cut above. High-performance tube shapes, extensive weight-saving butting, and seamless double-pass welds deliver a ride unlike anything in its class.

Connected


An integrated wheel sensor helps track your activity (like speed, distance and calories burned), registers your bike, reminds you of needed service and more, all through the free Cannondale App.

Remixte


Also available with a Remixte unisex frame, featuring a lowered top tube for easier step-through and greater comfort.

Graphic Reflectivity


Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions.

Si Motor Mount


Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.

[tab name="Technical Details"]

Drivetrain

CHAIN Shimano HG93, 9-speed
PINION -
SHIFT LEVERS Shimano Acera, 9-speed
CASSETTE Shimano, 11-36, 9-speed
CRANKSET Bosch Gen3, 38T
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Shimano Alivio

Wheels

FRONT HUB Shimano QR
REAR HUB Shimano MT400 12x148
RIMS WTB STX i29 TCS, 32h, tubeless ready
SPOKES DT Swiss Champion
FRONT TIRE Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
REAR TIRE Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
TUBES -
WHEEL SIZE 28"

Cockpit

SADDLE Cannondale Ergo Touring
SEATPOST Cannondale 4, 6061 Alloy, 31.6 x 350mm
SEATCLAMP -
HANDLEBAR Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
STEM Cannondale Adjustable , A-headset, 31.8mm
GRIPS Cannondale Ergo Fitness Dual Density, Lock-on
HEADSET Integrated Sealed Bearing, Tapered
PEDALS Cannondale Platform

Brakes

FRONT BRAKE Shimano MT200 hydro disc 180mm RT10 rotor
REAR BRAKE Shimano MT200 hydro disc 180mm RT10 rotor
BRAKE LEVER Shimano MT200 hydro disc
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK SR Suntour XCM, 100mm, Coil, 46mm offset
REAR SHOCK -
FRONT TRAVEL -
REAR TRAVEL -
FRAME SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, lock mount
FRAME COLOUR Black Pearl

E-Bike

MOTOR Bosch Active Line Plus
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 40 | TOUR: 100 | SPORT: 180 | TURBO: 270
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 35 | TOUR: 40 | SPORT: 45 | TURBO: 50
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Harmonious agile
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes
MOTOR WEIGHT approx. 3.2 kg (7.1 lbs)
USER INTERFACE / DISPLAY Bosch Purion
RIDING MODES 5 modes (Off, Eco, Tour, Sport, Turbo)
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerTube 400 (36V/11Ah | 400Wh | 2.9kg)
RANGE up to 120 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 2A Compact Charger
CHARGING TIME 2.5 hrs to 50 % | 6.5 hrs to 100%

Weight

WEIGHT 24.72 kg (54.5 lbs)
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE S (154-162cm) M (162-172cm) L (170-182cm) XL (182-195cm)
A FRAME HEIGHT 380 mm 435 mm 485 mm 535 mm
B SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.5°
C SEAT TUBE OFFSET - - - -
D SEAT ANGLE - - - -
E HEAD TUBE LENGTH 128 mm 128 mm 136 mm 144 mm
F HEAD TUBE ANGLE 68° 68° 68° 68°
G TOP TUBE LENGTH (HORIZONTAL) 580 mm 617 mm 640 mm 665 mm
H CHAINSTAY LENGTH 479 mm 479 mm 479 mm 479 mm
I BB DROP 57 mm 57 mm 57 mm 57 mm
J WHEEL BASE 1155 mm 1192 mm 1216 mm 1242 mm
K STACK 629 mm 629 mm 637 mm 644 mm
L REACH 393 mm 430 mm 451 mm 474 mm
M STAND-OVER HEIGHT 746 mm 775 mm 813 mm 847 mm
BB HEIGHT 315 mm 315 mm 315 mm 315 mm
CRANK LENGTH - - - -
STEM LENGTH - - - -
SEATPOST LENGTH - - - -
SADDLE WIDTH - - - -
HANDLEBAR WIDTH - - - -
TOTAL LENGHT - - - -
TRAIL 92 mm 92 mm 92 mm 92 mm
FORK RAKE 51 mm 51 mm 51 mm 51 mm
