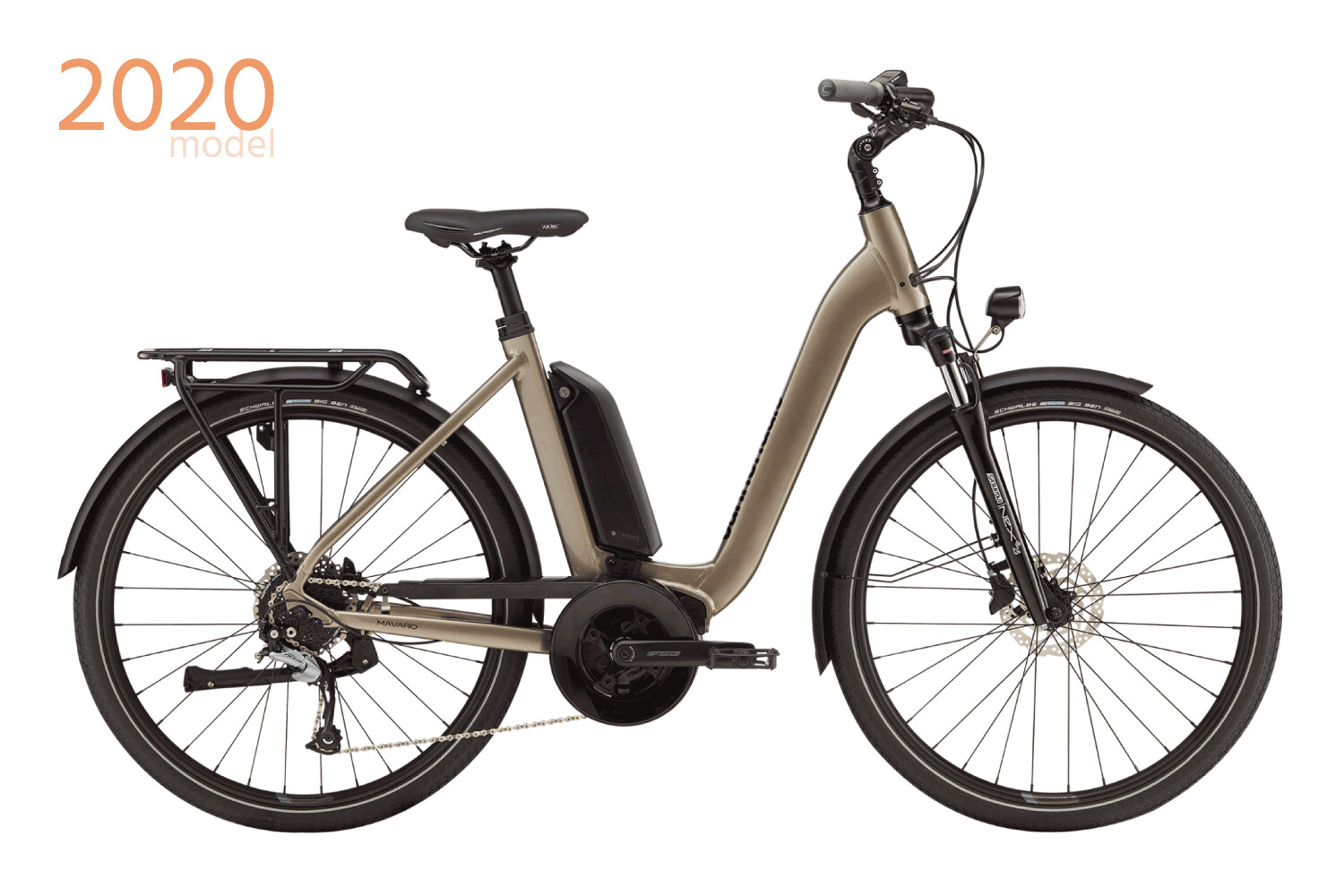

CANNONDALE • Mavaro Neo City

SKU CANN20-006
$3 400.00
In stock
1
Product Details

[tab name="Overview"]

Life is Good.

This urban e-bike is the perfect combination of superb comfort, sportive speed and all-around versatility.


Highlights
  • Bosch Active Line Plus Drive | 400Wh Battery
  • Shimano Acera/Altus Group, 9-speed | Shimano Hydro Disc Brakes
  • Schwalbe Big Ben tires with K-Guard puncture protection, reflective sidewalls


Try the Cannondale Mavaro Neo City at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

[tab name="Highlights"]

Bosch Active Line Plus


The Bosch Active Line Plus drive unit is perfect for urban and adventure riding. It's silent, powerful and light, with virtually no motor resistance above the 32 km/h support limit.

SmartForm C2 Alloy


Aluminum construction that's a cut above. High-performance tube shapes, extensive weight-saving butting, and seamless double-pass welds deliver a ride unlike anything in its class.

[tab name="Technical Details"]

Drivetrain

CHAIN KMC X9, 9-speed
PINION -
SHIFT LEVERS Shimano Altus, 9-speed
CASSETTE Shimano Acera, 11-34, 9-speed
CRANKSET FSA E-bike, 170mm, Gen3, 38t
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Shimano Acera

Wheels

FRONT HUB -
REAR HUB -
RIMS Cannondale C2, Double wall
SPOKES Stainless Steel, 14g
FRONT TIRE Schwalbe Big Ben, 27.5x2.0", K-Guard puncture protection, reflective sidewalls
REAR TIRE Schwalbe Big Ben, 27.5x2.0", K-Guard puncture protection, reflective sidewalls
TUBES -
WHEEL SIZE 27.5"

Cockpit

SADDLE Selle Royal Ariel
SEATPOST Cannondale C3, 6061 Alloy, 31.6 x 300mm
SEATCLAMP -
HANDLEBAR Cannondale E-Series Alloy, ergo backsweep, 680mm
STEM Cannondale Adjustable
GRIPS Cannondale Ergo Grip
HEADSET Tange Seiki integrated, 1-1/8 to 1.5"
PEDALS Cannondale Urban Pedal

Brakes

FRONT BRAKE Shimano MT200 hydro disc 180mm RT10 rotor
REAR BRAKE Shimano MT200 hydro disc 180mm RT10 rotor
BRAKE LEVER Shimano MT200 hydro disc
ABS -

Accessories

FRONT LIGHT -
TAIL LIGHT -
MUDGUARDS -
LUGGAGE RACK -
KICKSTAND -
LOCK -

Frameset

FORK SR Suntour SF17-NEX HLO E25 DS, 63mm, tapered steerer
REAR SHOCK -
FRONT TRAVEL -
REAR TRAVEL -
FRAME Mavaro NEO City Step-Thru, SmartForm C2 Alloy, Si Dropouts
FRAME COLOUR Meteor Gray

E-Bike

MOTOR Bosch Active Line Plus
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 40 | TOUR: 100 | SPORT: 180 | TURBO: 270
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 35 | TOUR: 40 | SPORT: 45 | TURBO: 50
POWER 250W
MAXIMUM CADENCE -
START-UP BEHAVIOUR Harmonious agile
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION Yes
MOTOR WEIGHT approx. 3.2 kg (7.1 lbs)
USER INTERFACE / DISPLAY Bosch Purion
RIDING MODES 5 modes (Off, Eco, Tour, Sport, Turbo)
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerPack 400 (36V/11Ah | 400Wh | 2.5kg)
RANGE up to 120 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER Bosch 2A Compact Charger
CHARGING TIME 2.5 hrs to 50 % | 6.5 hrs to 100%

Weight

WEIGHT -
TOTAL PERM WEIGHT -

* May differ depending on the design or configuration of the model. Specifications are subject to change without notice.

[tab name="Geometry"]

FRAME SIZE S/M L/XL
A FRAME HEIGHT - -
B SEAT TUBE ANGLE - -
C SEAT TUBE OFFSET - -
D SEAT ANGLE - -
E HEAD TUBE LENGTH - -
F HEAD TUBE ANGLE - -
G TOP TUBE LENGTH (HORIZONTAL) - -
H CHAINSTAY LENGTH - -
I BB DROP - -
J WHEEL BASE - -
K STACK - -
L REACH - -
M STAND-OVER HEIGHT - -
BB HEIGHT - -
CRANK LENGTH - -
STEM LENGTH - -
SEATPOST LENGTH - -
SADDLE WIDTH - -
HANDLEBAR WIDTH - -
TOTAL LENGHT - -
TRAIL - -
FORK RAKE - -

bike geometry picture
