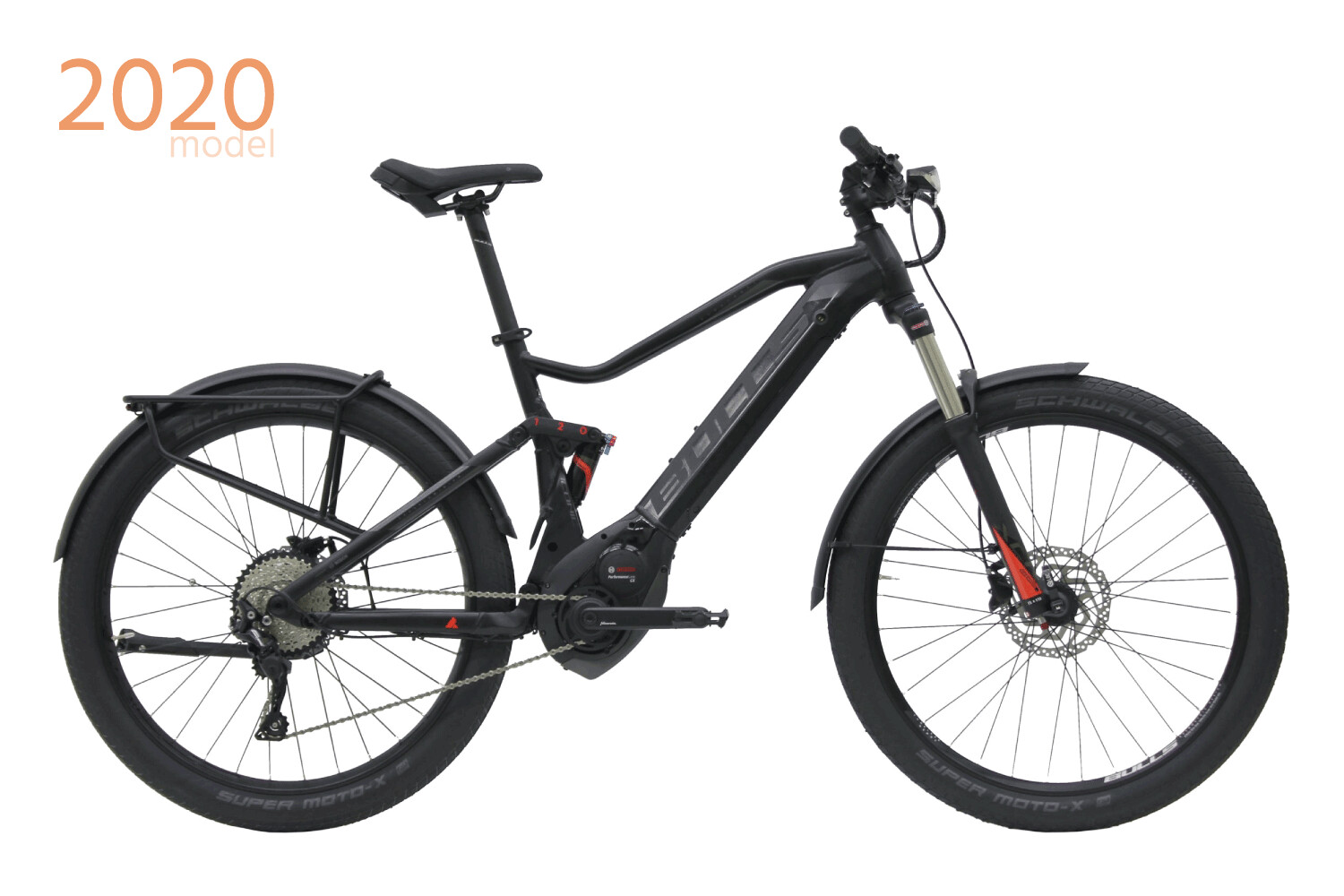

BULLS • ICONIC EVO TR 1

SKU BULL20-004
$6 399.00
In stock
1
Product Details

[tab name="Overview"]

The one-of-a kind.

You asked for it. We created it. It is a beast like no other. It is ICONIC. The one-of-a kind Iconic brings the soul of an XC eMTB to the streets where it devours commutes and errands and dares you to hop curbs and take the long way to your destination. 120mm full suspension, 20mph max speed, aluminum fenders and hydraulic disc brakes around a Bosch CX Motor/ Powertube-500Wh combo is all you ever asked for in an everyday, everything bike.


Try the Bulls ICONIC EVO TR 1 at your nearest Cit-E-Cycles location or call and speak with one of our e-bike experts at 1-855-557-7900 today!

Review

Get an independent review about this bike:

[tab name="Highlights"]

Powered By Bosch


Bosch Performance CX motor thrills the trail blazers with a torque of up to 75Nm and powerful assistance up to 300%

120mm Travel


120mm front suspension travel like cross country and trail mountain bikes.

Tapered Steerer


This is semi-integrated headset with an inner diameter of 1 1/8" at the top and 1.5" at the bottom. This ensures best riding stability and excellent control head stiffness. The biggest shaft results in stiffer fork and frame as riding forces are spread more evenly thanks to a thicker head tube.

Thru Axle


The main advantages of the thru-axle system are stiffness and strength, which add together to a safer bike. It has a clear advantage on disc brakes over the traditional quick release as it allows for easier and more precise wheel mount/dismount operation.

Internal Cable Routing


Internally routed shifting and braking cables ensure a clean and elegant look while ensuring a better protection to all important cables.

Boost


At 110mm/148mm, the hubs of the boost standard are wider than any conventional ones. Connected to the flatted spoke screen, they increase stiffness and stability of the wheel for even better handling.

[tab name="Technical Details"]

Drivetrain

CHAIN -
PINION -
SHIFT LEVERS Shimano Deore SL-M6000
CASSETTE Shimano CS-HG500-10, 11-42T
CRANKSET Miranda
CHAINRING -
CHAIN GUARD -
FRONT DERAILLEUR -
REAR DERAILLEUR Shimano Deore RD-M6000GS-D

Wheels

FRONT HUB -
REAR HUB -
RIMS BULLS Eccentric 35, tubeless ready
SPOKES -
FRONT TIRE Schwalbe Super Moto-X Snakeskin, 62-584, 27.5x2.40
REAR TIRE Schwalbe Super Moto-X Snakeskin, 62-584, 27.5x2.40
TUBES Presta Valve
WHEEL SIZE 27.5"

Cockpit

SADDLE Selle Royal eZone
SEATPOST BULLS
SEATCLAMP -
HANDLEBAR BULLS
STEM BULLS
GRIPS Velo, Flat Rubber, Locking
HEADSET -
PEDALS Wellgo

Brakes

FRONT BRAKE Shimano BR-MT200, hydraulic disc brakes, 180mm
REAR BRAKE Shimano BR-MT200, hydraulic disc brakes, 180mm
BRAKE LEVER Two-Finger Shimano Levers with Adjustable Reach
ABS -

Accessories

FRONT LIGHT Fuxon DHL-F170-EB Integrated Headlight (70 LUX)
TAIL LIGHT Supernova M99-E12 5-LED Integrated Backlight
MUDGUARDS Anodized Aluminum Alloy Fenders (65mm Width, Black)
LUGGAGE RACK -
KICKSTAND Standwell SW-RA032J Adjustable
LOCK -

Frameset

FORK SR Suntour XCR-34 Air CTS Boost 120mm
REAR SHOCK -
FRONT TRAVEL 120 mm
REAR TRAVEL -
FRAME 7005 Aluminum
FRAME COLOUR Black Matt

E-Bike

MOTOR Bosch Performance Line CX (MY19/20)
GEAR TYPE Derailleur system
SUPPORT LEVEL (%) ECO: 50 / TOUR: 120 / eMTB: 120-300 / TURBO: 300
MAXIMUM POSSIBLE DRIVE TORQUE ECO: 40/ TOUR: 50 / eMTB: 75 / TURBO: 75
POWER 250W (600W max)
MAXIMUM CADENCE -
START-UP BEHAVIOUR Very Sporty
SPEED SUPPORT UP TO 32 km/h (20 mph)
GEAR SHIFT DETECTION -
MOTOR WEIGHT 4.0 kg (8.8 lbs)
USER INTERFACE / DISPLAY Bosch Kiox
RIDING MODES Off, Eco, Tour, Sport, Turbo
CONNECTIVITY -
THROTTLE -
BATTERY Bosch PowerTube 36V/13.4Ah/500Wh
RANGE up to 150 km at a total (body + bicycle + luggage) weight of 100 kg at the optimal condition, calculate your own range by clicking here…
CHARGER -
CHARGING TIME Approximately 4.5h to 100%

Weight

WEIGHT 24.5 kg (54 lbs)
TOTAL PERM WEIGHT -

* Specifications are subject to change without notice

[tab name="Geometry"]

FRAME SIZE 46 cm 51 cm
A FRAME HEIGHT 460 mm 510 mm
B SEAT TUBE ANGLE 74° 74°
C SEAT TUBE OFFSET - -
D SEAT ANGLE - -
E HEAD TUBE LENGTH 110 mm 125 mm
F HEAD TUBE ANGLE 68.5° 68.5°
G TOP TUBE LENGTH (HORIZONTAL) 612 mm 631 mm
H CHAINSTAY LENGTH 480.2 mm 480.2 mm
I BB DROP 25 mm 25 mm
J WHEEL BASE - -
K STACK 600 mm 614 mm
L REACH 440 mm 455 mm
M STAND-OVER HEIGHT 800 mm 830 mm
BB HEIGHT - -
CRANK LENGTH - -
STEM LENGTH - -
SEATPOST LENGTH - -
SADDLE WIDTH - -
HANDLEBAR WIDTH - -
TOTAL LENGHT - -
TRAIL - -
FORK RAKE - -

bike geometry picture
