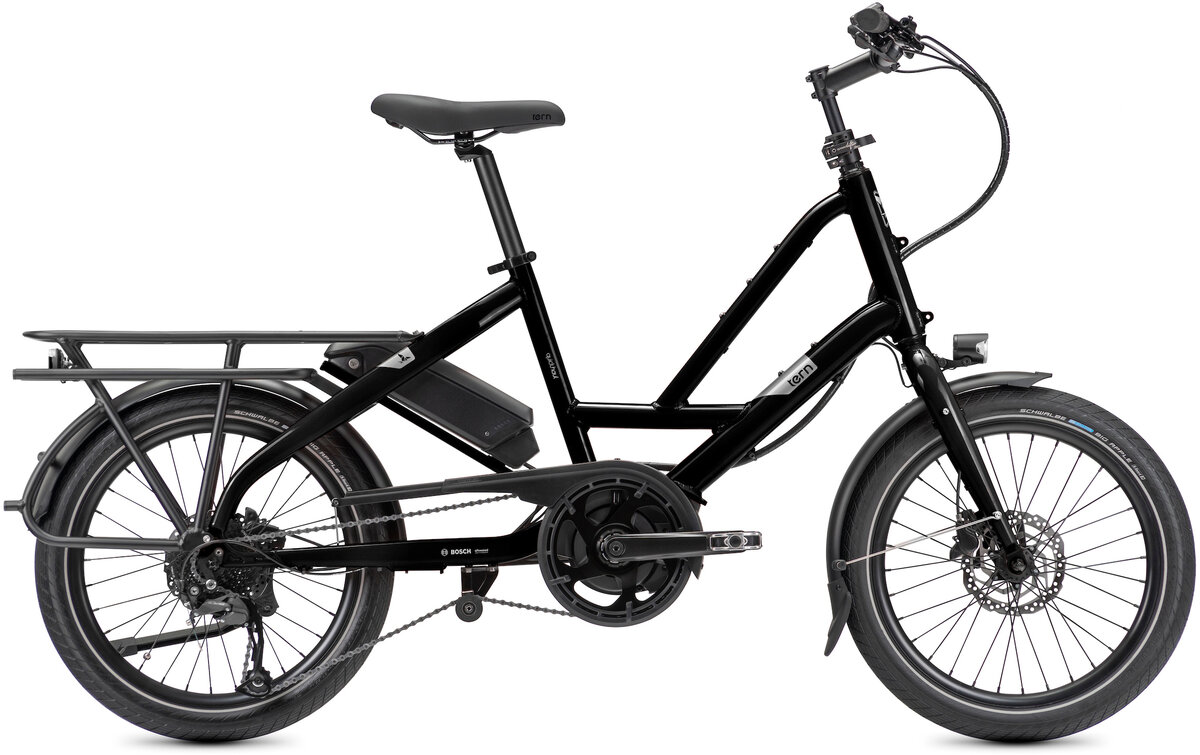

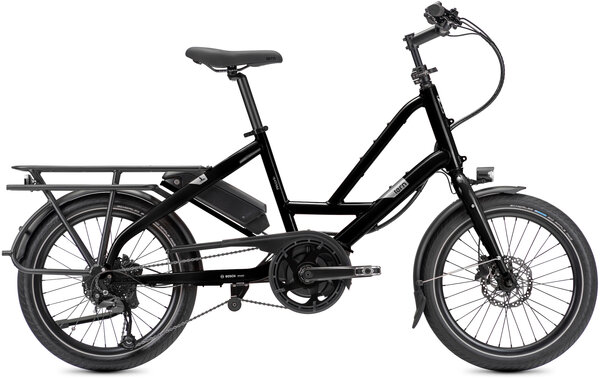

Tern Quick Haul P9

Tern Quick Haul P9
  • Color: Black
Color: Black
Size: One Size
Please select options Unavailable


What Makes it a P9 Performance?
- Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, max speed up to 28 mph
- 1x9-speed Shimano Alivio groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160—195 cm (5'3"—6'5"), and also riders 145—180 cm (4'9"—5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories-easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power-even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to


Frame Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork Cargo, steel, EFBE approved: 150 kg
Rims Kinetix Comp, for disc
Hubs Shimano Disc
Spokes Stainless Steel
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Bottom Bracket Motor integrated
Crankset Tern custom, forged 6061-AL crankarm
Shifters Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur Shimano Alivio Shadow
Cassette/Freewheel Shimano 11-34T, 9 spd
Chain KMC for eBike, 9 spd
Brakes Shimano, hydraulic disc
Brake Levers Shimano, hydraulic disc
Handlebars Low riser, 31.8, 6061-AL
Tape/Grips Velo ergonomic, lock-on
Stem Speedlifter, 150 mm extension, 3D Forged stem, 31.9
Headset TH, cartridge bearings
Seatpost 31.6 mm, 6061-AL, micro-adjust clamp
Saddle Velo Comfort
Pedals Urban with non-slip surface, sealed bearings
Accessories & Extras BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: Pletscher design, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Herrmans, 120 lumens REAR LIGHT: Herrmans FENDERS: Chromeplastic, stainless hardware RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Motor Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph
Battery Bosch PowerPack 400
Controller/Display Bosch Purion
Charger Compact Charger, 100-240V, 2A

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Black / One Size 810067160919 210000050311
