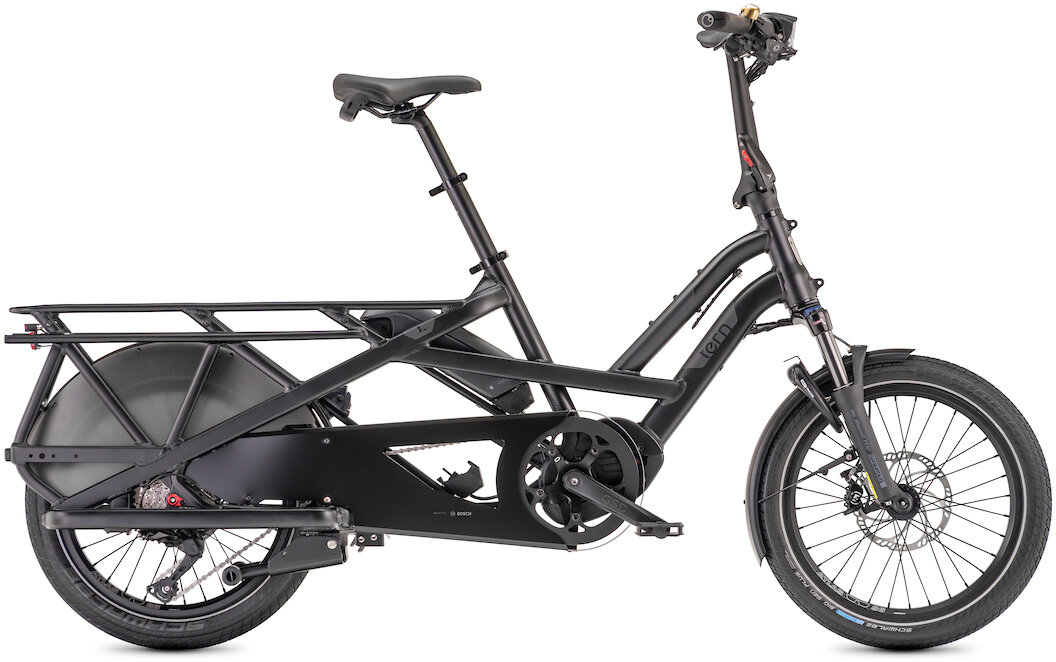

Tern GSD S10 LR

Tern GSD S10 LR
  • Color: Black
  • Color: Beetle Blue
$6,699.00 - $7,749.00
$8,149.00 - $9,249.00
Battery: Select battery
Size: One Size
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.


Still Small. Even More Useful.

With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

The GSD has an adjustable cockpit that resizes in seconds and without tools to fit riders 4'11" - 6'5", so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn't just fit—it's more comfortable, too.

The GSD's unique geometry makes for super stable riding, no matter what you're hauling (or how wiggly your kids are). The low center of gravity lets even smaller riders confidently manage heavy loads, and the step-thru frame makes getting on and off the bike a breeze. Plus, we've made it easier for the rider's feet to reach the ground at stops.

All GSD models now feature the best-in-class Bosch Cargo Line motor, which provides up to 85 Nm of torque for a smooth, natural-feeling ride, and 400% support to tackle serious hills. Top it off with Bosch's unparalleled service and expertise, and you can rest assured that your GSD's motor system will be safe and reliable for years to come.

- Bosch dual-battery system (400/900 Wh) for a range of up to 121 miles
- Shimano Deore 1 x 10-speed hub for smooth, efficient shifting
- Super tough Atlas Lockstand auto-locks when engaged—just press a button on the handlebars to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks
- Powerful and responsive Magura MT5 eSTOP 4-piston hydraulic disc brakes
- Always-on RearStop Brake Light helps you safely signal stops
- Integrated Abus Wheel Lock, keyed-alike with the battery
- Upgraded Atlas Wheels with custom CNC machined hubs for extra strength and durability
- Wide range of available cargo- and passenger-carrying accessories
- Fits two Thule Yepp Maxi seats, no adapters needed


Frame Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Rims Tern Atlas, ultra wide 36 mm, dual reinforced joint
Hubs Front: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear: Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes Stainless steel, 13G
Tires Front: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
Rear: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Crankset Tern GSD custom, forged 6061-AL DH crankarm
Shifters Shimano Deore, 1 x 10 spd
Rear Derailleur Shimano Deore Shadow+
Cassette/Freewheel Shimano 11-36T, 10 spd
Chain 10 spd, DHT for eBike, GST corrosion resistant coating
Brakes Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers Magura MT5 e-stop, hydraulic, with brake sensor
Handlebars Tern Sweep, 6061-AL, Tern Andros adapted
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seatpost Tern Telescope, 34.9/30.9 mm, 2014-AL
Saddle Tern GSD by Velo, with rear handle
Pedals Urban with non-slip surface, sealed bearings
Accessories & Extras BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover
KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: RearStop Brake Light, Always on brake light
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S): Frame integrated, heavy duty design
ACCESSORY: ABUS, keyed-alike with Bosch battery
Motor Bosch Cargo Line, 400% Assist, 85 Nm Torque
Battery Bosch Dual Battery system, 400 Wh or 400 Wh + 500 Wh batteries = 900Wh
Controller/Display Bosch Purion, 4 mode selectable, walk assist
Charger Bosch 100-240V, 4A Charger

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
400Wh / Beetle Blue / One Size 17510
900Wh / Beetle Blue / One Size 21163
400Wh / Black / One Size 12-9-46 210000005744
900Wh / Black / One Size 12-9-56
