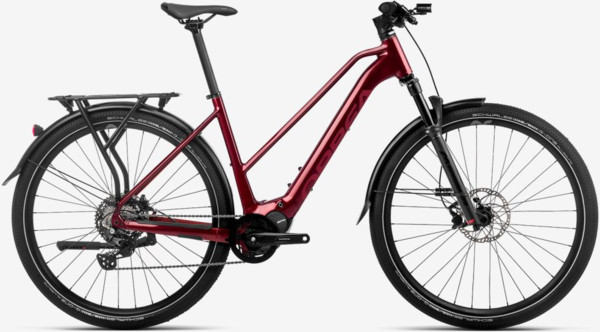

Orbea Kemen Mid 30 20mph

Orbea Kemen Mid 30 20mph
  • Color: Metallic Night Black (Matt-Gloss)
  • Color: Dark Red (Gloss-Matt)
  • Color: Urban Green (Gloss-Matt)
$4,799.00
$5,999.00
Please select options

Details

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

Geometry Chart:
SmallMediumLarge
1 - SEAT TUBE (C-T) 400 453 483
2 - TOP TUBE (EFF) 563 576 606
3 - HEAD TUBE 110 115 132
4 - CHAINSTAY 445 445 445
5 - BB HEIGHT 307,5 307,5 307,5
6 - BB DROP 63 63 63
7 - WHEELBASE 1134 1142 1173
8 - HEAD ANGLE 66,5º 67º 67º
9 - SEAT ANGLE 75º 75º 75º
10 - STANDOVER 732 740 743
11 - REACH 405 415 440
12 - STACK 617 624 640
13 - FORK LENGTH 513,5 513,5 513,5
14 - RAKE 44 44 44
Sizes:
Frame SizeRider height (in)
Small 61.1"-66.9"
Medium 65.0"-70.9"
Large 70.1"-74.8"

Specs

Frame Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
Wheels Alloy, Tubeless, 25c, 32H
Tires Schwalbe G-ONE Allround, 29x2,25, Performance Line RaceGuard, TLE, Reflective
Crankset Shimano Steps EM600
Chainrings Alloy EP8 36t w/chainguard
Shifters Shimano Deore M5130 Link Glide
Rear Derailleur Shimano Deore M5130 Link Glide GS Shadow Plus
Cassette/Freewheel Shimano CS-LG400 11-43t 10-Speed
Chain KMC eGlide
Brakes Magura MT30 Hydraulic Disc Easy Route Connection
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem Alloy forged, 35mm interface, -6º, ICR
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Alloy, 31.6mm, Setback 0
Saddle Selle Royal Vivo 1216 DRN 160x249mm
Pedals VP-537 Black
Motor Shimano EP801
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Night Black (Matt-Gloss) / Small 08434446305337 N64816VD 210000005786
Metallic Night Black (Matt-Gloss) / Medium 08434446305368 N64818VD
Metallic Night Black (Matt-Gloss) / Large 08434446305399 N64819VD
Dark Red (Gloss-Matt) / Small 08434446305320 N64816VB
Dark Red (Gloss-Matt) / Medium 08434446305351 N64818VB 210000005788
Dark Red (Gloss-Matt) / Large 08434446305382 N64819VB
Urban Green (Gloss-Matt) / Small 08434446305221 N64816VA
Urban Green (Gloss-Matt) / Medium 08434446305344 N64818VA
Urban Green (Gloss-Matt) / Large 08434446305375 N64819VA
