Details

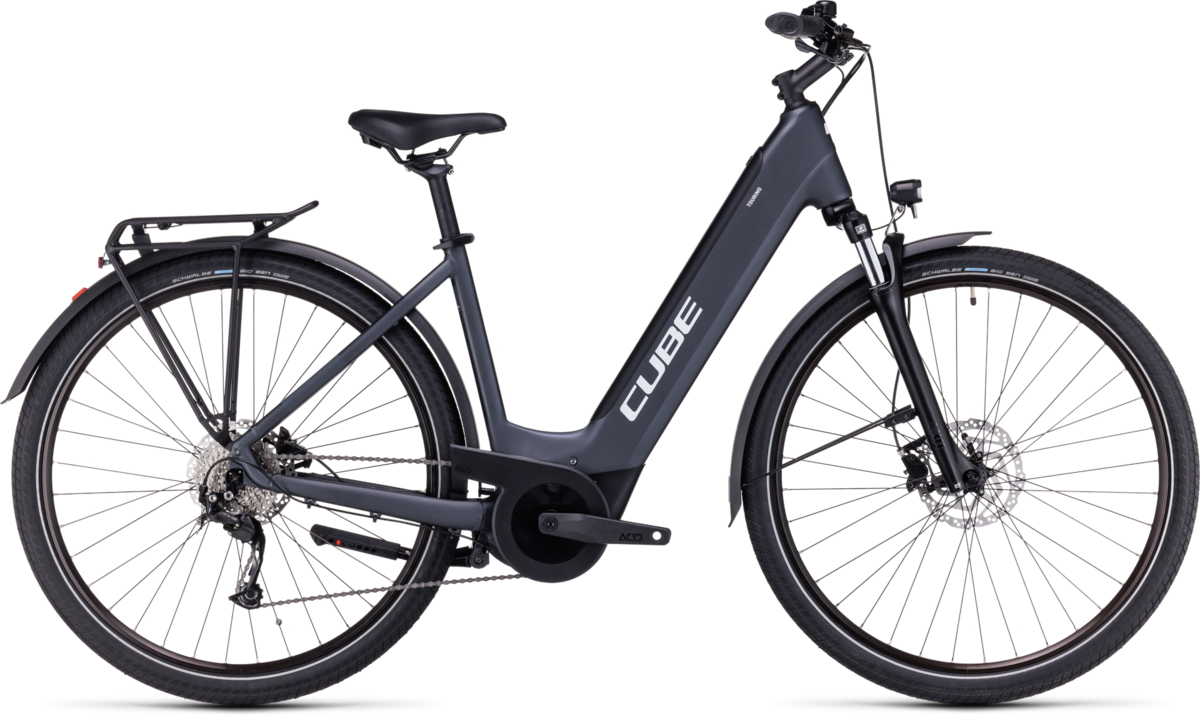

We made our Touring Hybrid to be versatile, easy to live with, and comfortable. The powerful Bosch Performance motor with Bosch Smart System and PowerTube battery are all so neatly integrated into the design, you'll barely notice they're there – apart from the extra help at the pedals, of course. Revised Efficient Comfort Geometry centers around a 63mm travel suspension fork for comfort and control, even on rough roads. The carrier is designed to make carrying a load easier, and the seat clamp even has a hidden tool in its lever. Add the new ACID chain guard, kickstand, and full-length mudguards and you've got everything you need. And, with a choice of classic Men's, Trapeze or Easy Entry frame designs, there'll be a style and size that's perfect for you.
The powerful Bosch Performance motor with Smart System, high-capacity battery and easy-to-use Shimano 9-speed gears make light work of any trip, while strong hydraulic disc brakes ensure you can stop safely, whatever the weather. A choice of frame styles and sizes means there's a great-handling, great-looking Touring Hybrid that's perfect for you. And a full complement of accessories – semi-integrated carrier, mudguards, and kickstand – means you're all set for any ride.
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high-capacity batteries. You'll wonder how you ever managed without it.
Frame Size | X-Small | Small | Medium | Large |
---|---|---|---|---|
Seat tube (mm) | 440 | 480 | 520 | 560 |
Seat angle | 73° | 73° | 73° | 73° |
Head tube angle | 68.2° | 68.7° | 69.2° | 69.5° |
Chainstays (mm) | 509 | 509 | 509 | 509 |
Head tube (mm) | 160 | 160 | 160 | 160 |
Wheelbase (mm) | 1171 | 1176 | 1181 | 1185 |
BB-Height to Hub (mm) | 75 | 75 | 75 | |
Reach (mm) | 386 | 396 | 406 | 415 |
Stack (mm) | 655 | 657 | 659 | 662 |
Specs
Fork | SR Suntour NVX30 Coil, 63mm |
---|---|
Rims | CUBE EX23, 36H, Disc |
Hubs | Shimano FH-TX505, QR, Centerlock |
Tires | Schwalbe Big Ben, Active, K-Guard, 55-622 |
Crankset | ACID E-Crank, 40T, 170mm |
Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
Rear Derailleur | Shimano RD-M3100-SGS, 9-Speed |
Cassette/Freewheel | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Handlebars | CUBE Comfort Trail Bar, 700mm |
Tape/Grips | ACID Travel Comfort |
Stem | CUBE Performance Stem Pro, 31.8mm |
Headset |
ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm) Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence Comfort |
Pedals | ACID PP Trekking |
Accessories & Extras |
Front Light: CUBE Shiny 50 Lux, 12V, DC Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC Kickstand: ACID FM Pure Kickstand Mudguards: ACID 65 BB-Mount Bell: Easy Bell Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
Motor | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250 Watt), Smart System |
Battery | Bosch PowerTube 500 |
Controller/Display | Bosch LED Remote |
Charger | Bosch 4A |
* Subject to change without notice.
Part Numbers
Option | UPC | Store SKU |
---|---|---|
Grey´N´White / X-Small | 04054571389114 | 210000050532 |
Grey´N´White / Small | 04054571389121 | 210000050533 |
Grey´N´White / Medium | 04054571389138 | 210000050534 |
Grey´N´White / Large | 04054571389145 |
