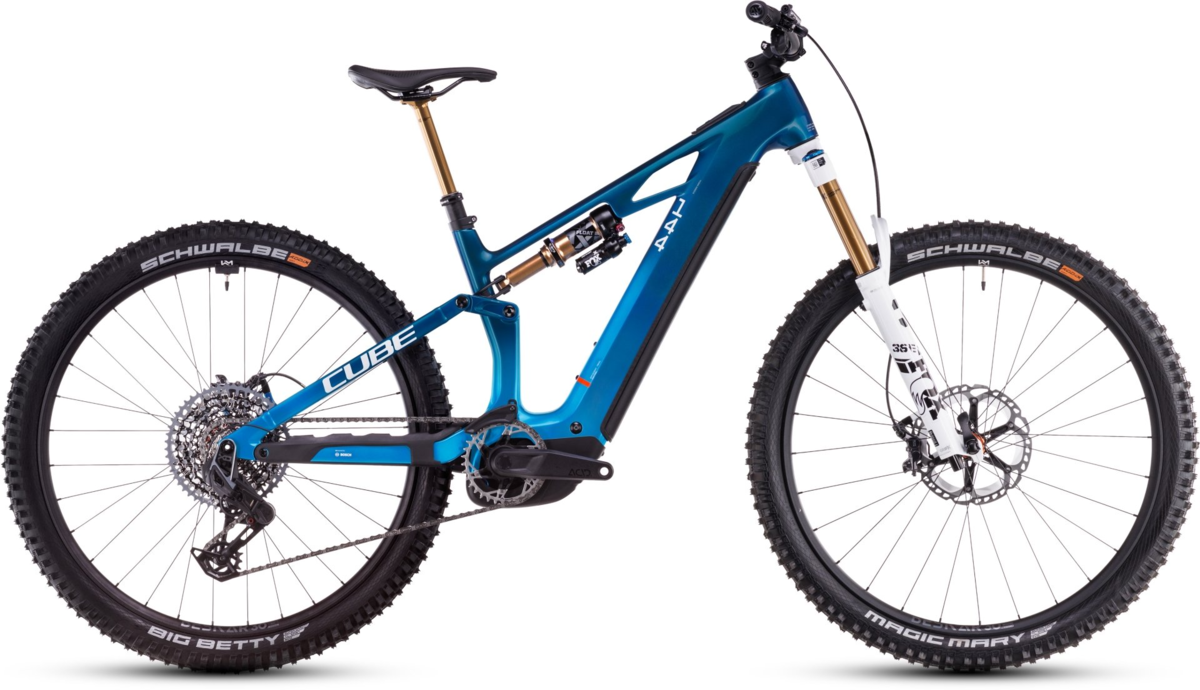

CUBE Bikes Stereo Hybrid ONE44 HPC AT 800

CUBE Bikes Stereo Hybrid ONE44 HPC AT 800
$10,499.00
Color: Action Team
Size: Select size
Wheel Size: 29-Inch
Please select options Unavailable

Details

The Stereo Hybrid One44 HPC AT 800 is all about sweating the details. The 4-piston Shimano XT hydraulic brake calipers harness the incredible grip of Schwalbe's Magic Mary and Big Betty 2.4in tyres to deliver assured speed control, no matter the conditions. Sram's XO Eagle Transmission 1x12 gears transfer the combined power of your pedalling and the Bosch CX drive unit – which can deliver up to 85 Nm of extra torque – to the Newmen Beskar 30 wheelset, backed up by an 800 Wh battery for the best possible range. And with a Fox Float 36 Factory Grip X fork, Float X Factory rear shock and remote dropper post, the only component missing is you.

Sizes:
Frame SizeS (Slack)S (Moderate)M (Slack)M (Moderate)L (Slack)L (Moderate)XL (Slack)XL (Moderate)
Seat Tube Length (mm/in) 370 / 14.6 370 / 14.6 405 / 15.9 405 / 15.9 420 / 16.5 420 / 16.5 480 / 18.9 480 / 18.9
Top Tube Horizontal (mm/in) 567 / 22.3 567 / 22.3 596 / 23.5 598 / 23.5 626 / 24.6 627 / 24.7 669 / 26.3 671 / 26.4
Seat Tube Angle (degree) 76 76 76.2 76 76.2 76 76.2 76
Head Tube Angle (degree) 65 65 64.8 65.4 64.8 65.4 64.8 65.4
Chainstay Length (mm/in) 450 / 17.7 450 / 17.7 457 / 18.0 457 / 18.0 457 / 18.0 457 / 18.0 457 / 18.0 457 / 18.0
Head Tube Length (mm/in) 128 / 5.0 128 / 5.0 106 / 4.2 106 / 4.2 120 / 4.7 120 / 4.7 148 / 5.8 148 / 5.8
Wheelbase (mm/in) 1201 / 47.3 1201 / 47.3 1233 / 48.5 1226 / 48.3 1264 / 49.8 1256 / 49.4 1311 / 51.6 1303 / 51.3
BB Height to Hub (mm/in) 11 / 0.4 11 / 0.4 30 / 1.2 30 / 1.2 30 / 1.2 30 / 1.2 30 / 1.2 30 / 1.2
Protrusion Height - 80mm (mm/in) 733 / 28.9 733 / 28.9 748 / 29.4 748 / 29.4 748 / 29.4 748 / 29.4 748 / 29.4 748 / 29.4
Reach (mm/in) 425 / 16.7 425 / 16.7 452 / 17.8 450 / 17.7 477 / 18.8 475 / 18.7 512 / 20.2 510 / 20.1
Stack (mm/in) 606 / 23.9 606 / 23.9 620 / 24.4 622 / 24.5 632 / 24.9 634 / 25.0 658 / 25.9 660 / 26.0

Specs

Frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Fork Fox 36 Float Factory GRIPX, 2-Position w/High/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated
Rear Shock Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Wheels Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires Front: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 Rear: Schwalbe Big Betty, Addix Soft, Super Gravity, Kevlar, 2.4
Crankset ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
Shifters SRAM AXS™ Pod Controller
Rear Derailleur SRAM X0 Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Cassette/Freewheel SRAM XS-1275, 10-52T
Chain SRAM GX Eagle™ Transmission
Brakes Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Handlebars Race Face ERA 35
Tape/Grips ACID Disrupt
Stem CUBE Performance Stem E-MTB 35, FPI-Link
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Seatpost Fox Transfer Factory 31.6mm, Kashima Coated
Saddle ACID Venec EMTB Trail 140
Motor Bosch Drive Unit Performance Line CX (85Nm)
Battery Bosch PowerTube 800
Controller/Display Bosch Purion 400
Charger Bosch 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Action Team / Small / 29-Inch 04054571485595 895109S
Action Team / Medium / 29-Inch 04054571485601 895109M
Action Team / Large / 29-Inch 04054571485618 895109L 210000051296
Action Team / X-Large / 29-Inch 04054571485625 895109XL
