Details
It's all in the detail. So sleek is the Reaction Hybrid's PowerTube frame design, you'll barely notice the high-capacity Bosch battery and sophisticated, fourth-generation CX motor. But you'll definitely recognize the power. Agile Ride Geometry and a 1.5in head tube deliver impeccable, confidence-inspiring handling. Internally routed cables reduce maintenance and help keep gear shifts clean and precise. The Trapeze frame option and full-size split breakdown mean there's a Reaction Hybrid to suit everyone. There's even routing for a stealth dropper post upgrade, so your Reaction Hybrid can stay with you as your riding skills develop.
Want to get more out of the places you ride? The Reaction Hybrid Pro's fourth-generation Bosch CX motor, Purion controller, and high-capacity PowerTube battery give you the power you need to explore. Combined with Shimano's legendarily reliable Deore 1x11 transmission, it's your ticket to riding further, higher and more often than before. The X-Fusion air fork features a lockout, easy adjustability, and Boost front axle for plush bump-swallowing performance. And grippy 2.6in Schwalbe tires with powerful Shimano hydraulic disc brakes ensure you're always in full control.

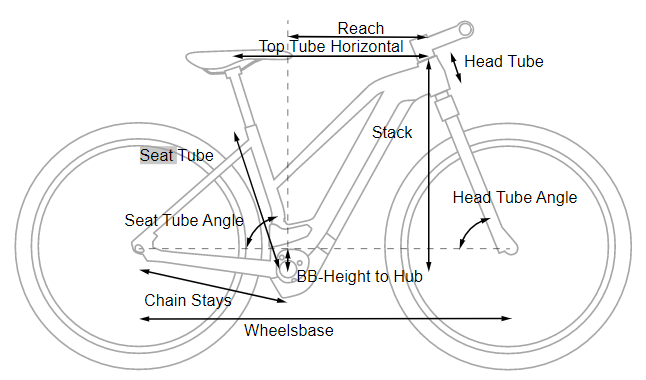

Trapeze Small: 15"/27.5 | Trapeze Medium: 17"/29 | Trapeze Large: 19"/29 | |
---|---|---|---|
SEAT TUBE (mm) | 370 | 405 | 450 |
TOP TUBE HORIZONTAL (mm) | 577 | 580 | 600 |
SEAT TUBE ANGLE | 74 | 74 | 74 |
HEAD TUBE ANGLE | 68 | 68 | 69 |
CHAIN STAYS (mm) | 441 | 460 | 460 |
HEAD TUBE (mm) | 120 | 115 | 120 |
WHEELSBASE (mm) | 1119.4 | 1141 | 1150 |
BB-HEIGHT TO HUB (mm) | 48 | 65 | 65 |
STANDOVER HEIGHT (mm) | 676 | 700 | 709 |
REACH (mm) | 409.9 | 403 | 420 |
STACK (mm) | 602.3 | 628 | 638 |
Specs
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
---|---|
Fork | X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Hubs |
Front: Shimano HB-MT400-B, 15mm, Boost, Centerlock Rear: Shimano FH-TX505, QR, Centerlock |
Tires | Schwalbe Smart Sam, Active, K-Guard, 2.6 |
Crankset | ACID E-Crank, 175mm, 38T |
Shifters | Shimano Deore SL-M5100, Rapidfire-Plus |
Rear Derailleur | Shimano Deore RD-M5100-SGS, 11-Speed |
Cassette/Freewheel | Shimano Deore CS-M5100, 11-51T |
Chain | KMC X11 |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Handlebars | CUBE Rise Trail Bar, 720mm |
Tape/Grips | ACID React Pro |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Headset | 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle | Natural Fit Sequence |
Pedals | ACID PP MTB |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
Battery | Bosch PowerTube 500 |
Controller/Display | Bosch Purion |
Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
flashgrey n green / 46cm | 04054571421555 | 598305Easy Entry 46 cm/XS | 210000049085 |
flashgrey n green / 50cm | 04054571421562 | 598305Easy Entry 50cm/S | 210000006230 |
flashgrey n green / 54cm | 04054571421579 | 598305Easy Entry 54cm/M | 210000006231 |
flashgrey n green / 58cm | 04054571421586 | 598305Easy Entry 58cm/L | 210000006232 |
